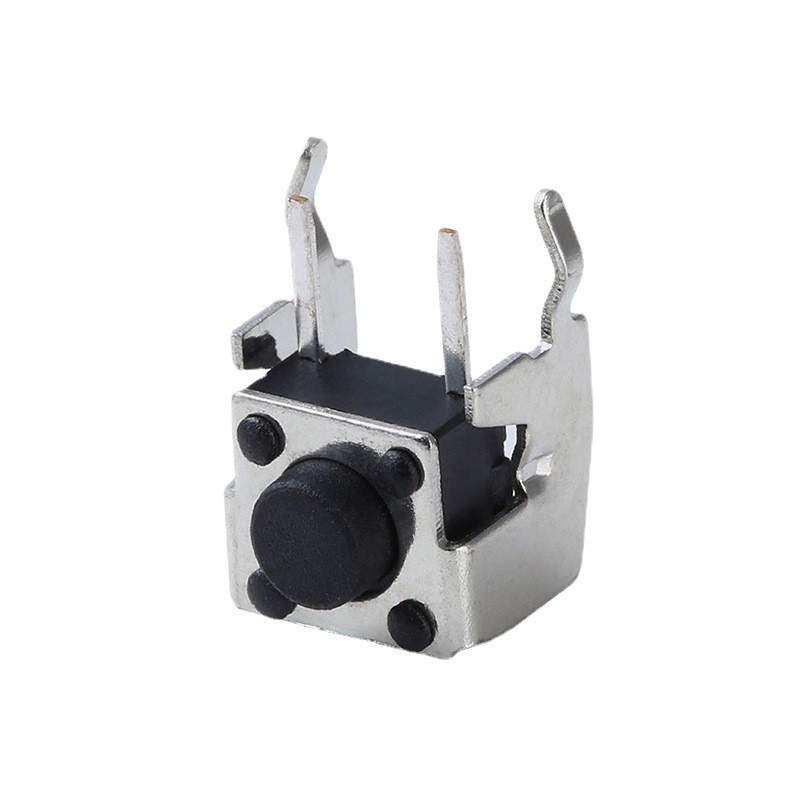

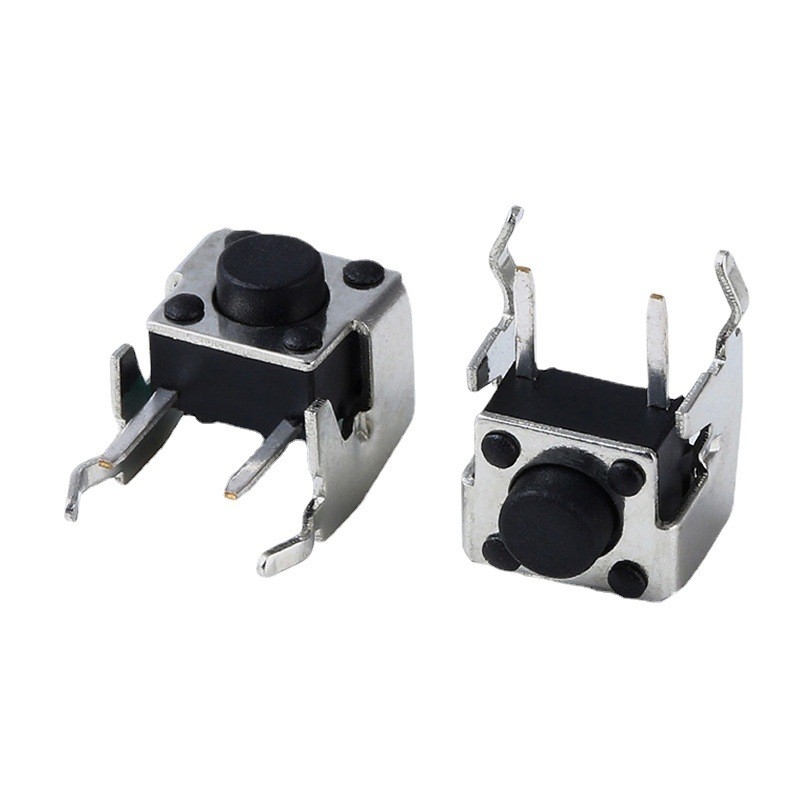

6*6 Tact Switch With Metal Bracket

Bracket Switches'  Feature

Micro Miniature:Small size, light weight, size only 6*6mm, easy to design

light operating：Operation force can be customized, the operation of the tap switch is very simple, just gently press the switch button, you can realize the circuit on and off.

It has good feeling and long life.

The support is more stable.

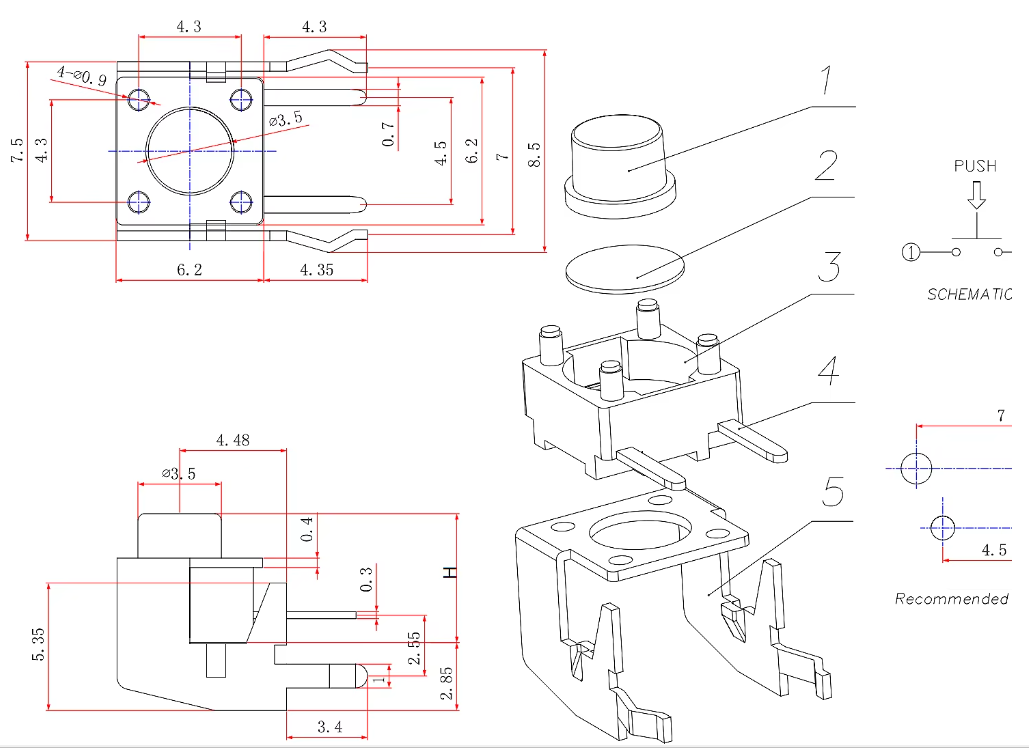

The 6*6 Tact Switches' Drawing

Tact Switch Handling

1. tact switch Operation

Do not repeatedly operate the Switch with excessive force. Applying excessive pressure or applying additional force after the plunger has stopped may deform the disc spring of the Switch,resulting in malfunction. In particular, applying excessive force to Side-operated Switches may damage the caulking, which in turn may damage the Switch. Do not apply force exceeding the maximum (29.4 N for 1 minute, one time) when installing or operating Side-operated Switches.Be sure to set up the Switch so that the plunger will operate in a straight vertical line. A decrease in the life of the Switch may result if the plunger is pressed off-center or from an angle.

2. tact switch Dust Protection

Do not use tact switch that are not sealed in dust-prone environments. Doing so may cause dust to penetrate inside the Switch and cause faulty contact. If a Switch that is not sealed must be used in this kind of environment, use a sheet or other measure to protect it against dust.

Tact Switch Application

Consumer Electronics

Keyboards and Remote Controls: Tactile switches are widely used for buttons in keyboards, mice, and remote controls, providing tactile feedback for a better user experience.

Home Appliances

Microwaves and Washing Machines: Used for easy control of household devices, enabling simple on/off functions or adjusting settings.

Automotive

Car Dashboards: Tactile switches are found in car interiors for controlling features like seat adjustments, window functions, and infotainment systems.

Industrial Control

Machine Control Panels: In industrial settings, tactile switches are used to start/stop machines, adjust settings, and operate equipment in factories.

Medical Devices

Diagnostic Equipment: Tactile switches are crucial in medical devices like blood pressure monitors and glucose meters, offering reliable control for testing and monitoring.
