Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: SS-2202
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Export package
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
Current Rating: 0.5A Max
Voltage Rating: 40V
Insulation Resistance: 100MEG. OHM Min
Contact Resistance: 30 Milliohms Max
Operation Temperature: -20℃~85℃
Insert Force: 44.1N Max
Extract Force: 9.8N Min

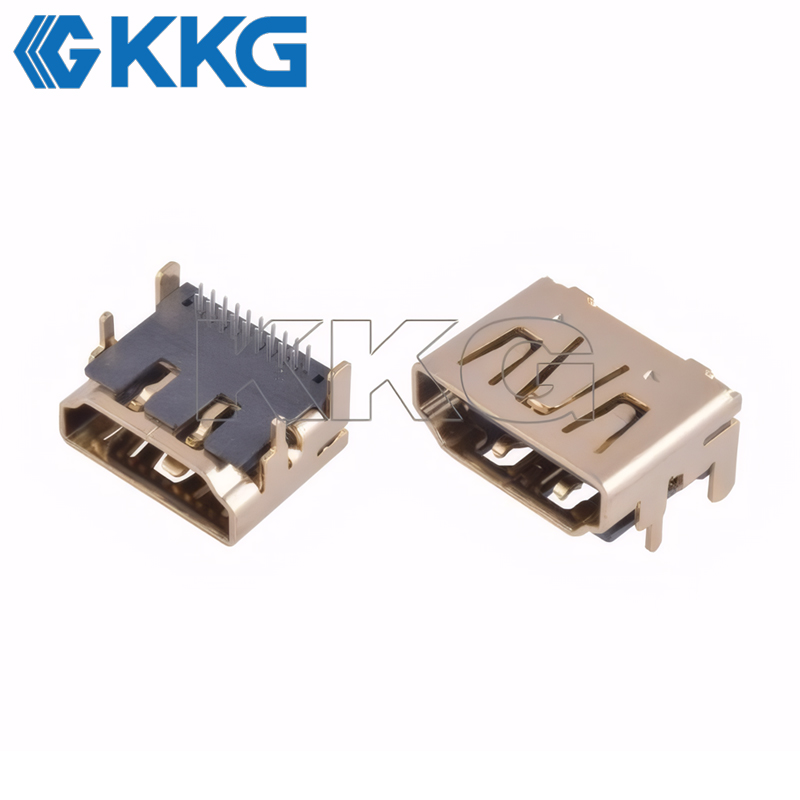

The mini HDMI jack operates by transmitting high-definition video and audio signals from the device (source) to an output device, such as a TV or projector. The 19 pins inside the jack establish an electrical connection with the corresponding contacts in a mini HDMI plug, which is connected to an HDMI cable. The transmission is based on differential signaling, using both the video and audio channels to deliver high-bandwidth content without loss of quality.
PS5 MINI HDMI Connector's Product Functions
1.Video Output: Transmits high-quality video, supporting resolutions from 480p up to 4K.
2.Audio Output: Carries multi-channel audio, such as surround sound (Dolby TrueHD and DTS-HD Master Audio).
3.Control Signals: Supports CEC (Consumer Electronics Control), allowing for control of external devices through a single remote.
4.Data Transfer: Facilitates the transfer of compressed or uncompressed video data and multi-channel audio data.
XBOX MINI HDMI Connector's Product Applications
1.Consumer Electronics: Used in cameras, camcorders, and portable media players.
2.Computers and Laptops: For connecting to monitors, projectors, or TVs for HD video output.
3.Gaming Devices: Supports HDMI output for gaming consoles to connect to larger displays.
4.Mobile Devices: For connecting smartphones and tablets to external displays for presentations or media playback.
| Current Rating | 0.5A Max |
| Voltage Rating | 40V |
| Insulation Resistance | 100MEG. OHM Min |
| Contact Resistance | 30 Milliohms Max |
| Operation Temperature | -20℃~85℃ |
| Insert Force | 44.1N Max |
| Extract Force | 9.8N Min |
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
Q1: Can you open mold for terminal order or uncommon mold?
A: Yes, we need time to negotiate in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
Q2.Can you accept small order, like 1000 pcs tact switch, 2000 pcs tact switch?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.
Q3.What kind of service do we have?
We provide turnkey solution including RD, PCB fabrication, SMT, testing and other value-added service.
Q4.Can you provide samples?
A: Yes! Free samples! Only shipping fee needs to be paid.
Q5. What is the shipping cost?
A: Depending upon the quantity and the destination.
