The Miniature DPDT Slide Switch is a compact and versatile component designed for precision control in electronic circuits. Here are its key features with technical specifications:
1. Dual-Pole Dual-Throw (DPDT) Configuration: This switch features two independent circuits (poles) with two positions each (throws), enabling simultaneous control of two separate signal paths. Its contact rating is typically 3A at 125VAC or 1.5A at 250VAC, making it suitable for low-power applications.
2. Compact Dimensions: With a standard footprint of 6.5mm × 10mm × 4.3mm (L×W×H), the miniature design saves PCB space while maintaining robust performance. The slide actuator travel distance is precisely engineered at 2.5±0.2mm for reliable switching.
3. High Reliability: Constructed with phosphor bronze contacts and silver plating, the switch offers low contact resistance (<30mω initial="">) and withstands 10,000+ mechanical cycles. The operating temperature range spans -20°C to +85°C for diverse environments.
4. Precise Actuation: The slide mechanism requires an operating force of 200±50gf, ensuring positive tactile feedback. The gold-plated terminals provide excellent solderability with 260°C wave soldering compatibility for 10 seconds maximum.
5. Versatile Mounting Options: Available in both through-hole (THT) and surface-mount (SMD) variants. The THT version features 0.5mm diameter leads with 2.54mm pitch, while SMD types comply with J-STD-020 moisture sensitivity standards.
6. Electrical Isolation: The switch provides 500VAC insulation resistance between contacts for 1 minute, with dielectric strength exceeding 100MΩ at 500VDC. This ensures safe operation in circuits requiring signal separation.
The miniature DPDT Slide Switch is a compact and highly reliable switching component designed for modern electronic applications that require dual-circuit control in limited PCB space. With its durable mechanical structure and stable electrical performance, this DPDT slide switch is widely used in industrial automation, robotics, communication systems, consumer electronics, and testing equipment.
Engineered for precision and long-lasting performance, the switch features a smooth sliding mechanism that provides secure tactile feedback and dependable contact switching. Its compact size makes it an ideal micro DPDT switch for high-density PCB layouts and portable electronic devices where space optimization is critical.
This high-quality mini slide switch supports multiple switching configurations, including ON-ON and ON-OFF-ON types, allowing flexible circuit routing, polarity reversal, and operational mode selection in various electronic systems.
The DPDT slide switch operates by mechanically sliding an actuator to change the internal electrical connections between terminals. Inside the switch housing, a conductive contact bridges specific terminals depending on the slider position, enabling precise switching between two independent circuits.
In the ON-ON configuration, each input terminal connects to one of two output terminals. In the ON-OFF-ON configuration, the switch includes a neutral center position where no electrical connection is established, providing an additional OFF state for enhanced control functionality.
Designed for reliability and durability, this Miniature DPDT Slide Switch ensures consistent switching performance over repeated cycles, making it suitable for both commercial and industrial applications.
Compact and space-saving design
Reliable dual-circuit switching capability
Smooth sliding actuator with tactile feedback
Durable internal contact structure
Supports ON-ON and ON-OFF-ON configurations
Stable electrical conductivity and low contact resistance
Suitable for PCB mounting applications
Long mechanical operating life
Precision-engineered terminals for secure connections
Ideal for portable and compact electronic devices
This professional-grade micro DPDT switch is engineered to deliver dependable performance in demanding electronic environments.
Compared with standard switching solutions, the miniature DPDT slide switch offers superior flexibility and compactness for dual-circuit applications. Its double-pole double-throw structure enables simultaneous control of two separate circuits, greatly improving system functionality and efficiency.
The compact design allows the mini slide switch to fit into space-constrained electronic products without compromising switching reliability. Its high-quality internal contacts minimize signal loss and ensure stable operation during long-term use.
This DPDT slide switch is also highly versatile, supporting applications such as polarity reversal, signal routing, and mode switching. The robust sliding mechanism provides smooth operation and precise switching action, even after thousands of cycles.
| Parameter | Specification |
|---|---|
| Product Type | Miniature DPDT Slide Switch |
| Switch Configuration | DPDT (Double Pole Double Throw) |
| Switch Positions | ON-ON / ON-OFF-ON |
| Terminal Type | 6 Pin |
| Mounting Type | PCB Mount |
| Contact Type | Sliding Contact |
| Operating Method | Mechanical Slide Actuation |
| Application | Signal & Power Switching |
| Mechanical Life | Long Cycle Operation |
| Switch Size | Compact / Miniature |
1.Reversing Polarity
The DPDT slide switch can reverse motor polarity, enabling forward and reverse rotation control in robotics and motor-driven systems.
2.Circuit Selection
Allows users to switch between two separate circuit paths, making it ideal for dual-function electronic systems.
3.Power Switching
Controls two independent power supplies or electrical loads simultaneously.
4.Mode Switching
Used in electronic devices to alternate between operating modes such as audio settings, communication channels, or system configurations.
5.Signal Routing
The micro DPDT switch can route audio, video, or data signals between different inputs and outputs with reliable performance.
Industrial Automation
Widely used in industrial control panels for selecting operational states and switching signal paths.
Robotics
Ideal for robotic motor direction control and polarity reversal systems.
Telecommunications
Used in communication devices and network systems for signal switching and channel selection.
Lighting Systems
Suitable for controlling multiple lighting circuits in automotive and architectural lighting applications.
Consumer Electronics
Commonly found in audio equipment, handheld devices, portable instruments, and household appliances.
Testing Equipment
The mini slide switch is frequently used in prototyping boards, testing systems, and laboratory equipment for circuit selection.
Model Railroads
Perfect for railway switching systems and train direction control applications.
1.What is a miniature DPDT slide switch?
A miniature DPDT slide switch is a compact mechanical switch that can simultaneously control two separate electrical circuits using a sliding actuator mechanism.
2.What does DPDT mean?
DPDT stands for Double Pole Double Throw. It means the switch controls two independent circuits and can switch each circuit between two different outputs.
3.What is the difference between ON-ON and ON-OFF-ON configurations?
An ON-ON switch toggles directly between two connected states, while an ON-OFF-ON switch includes a center OFF position where no circuit connection is made.
4.Where can a micro DPDT switch be used?
A micro DPDT switch is commonly used in robotics, telecommunications, industrial automation, audio systems, portable electronics, and testing equipment.
5.Can this mini slide switch reverse motor direction?
Yes. The DPDT slide switch is widely used for polarity reversal in DC motor applications, allowing forward and reverse motor control.

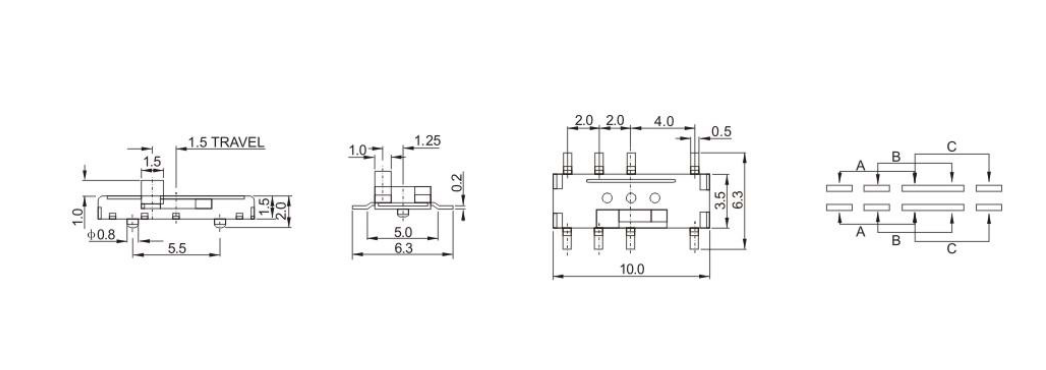

| Contact Type | DPDT |
| Travel | 1.5 |
| The rated load | DC 4V 300mA |
| Contact Impedance | ≤50mΩ |
| Insulation Impedance | ≥100mΩ DC500V |
| Resistance welding temperatur | 250±5℃ 5s |
| The service life | 10,000 cycles |
| The use of temperature | -25℃ to 80℃ |
| Use of Humidity | ≤ 85% RH |
| Operating force | 300gf |
KKG electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
High effiency of production, shipped in 1 day after payment.
A: It's a compact Double Pole Double Throw (DPDT) switch that controls two separate circuits, each with three connection options, via a sliding mechanism.
A: Ideal for small electronics, audio equipment, model controls, and devices requiring space-saving circuit switching.
A: It allows two independent circuits to be connected to one of two paths each, enabling complex functions like signal routing or motor reversal.
A: Check PCB vs. panel mount options, slide actuator length, and terminal type (e.g., through-hole or solder lug) for your layout.
A: Slides offer tactile feedback, stable setting retention, and a low profile—perfect for cramped enclosures.
A: Many feature high-cycle life (e.g., 10,000+ operations) and robust housings, ensuring reliability in demanding applications.
