Through-Hole 3-Pin Slide Switch

KKG MS-12D16 SPDT Slide Switch – Reliable Through-Hole 3-Pin PCB Control Solution

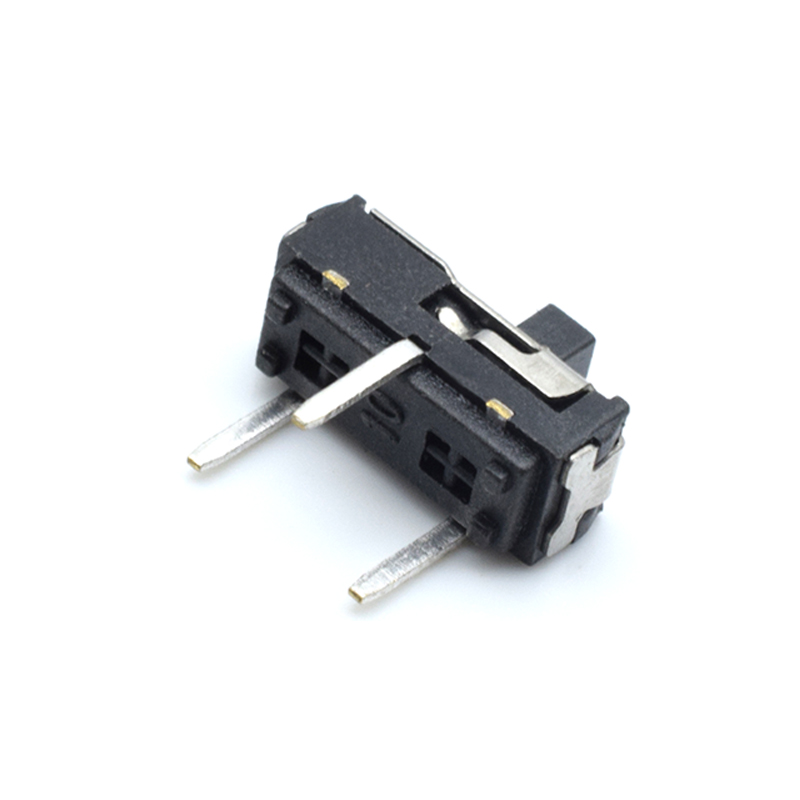

The KKG MS-12D16 is a durable and versatile switching component designed for a wide range of electronic applications. As a high-quality through-hole 3-pin slide switch, it provides stable mechanical performance and reliable electrical switching for both prototyping and mass production.

Engineered with a classic SPDT structure, this component is a dependable PCB through-hole slide switch 3 pin, allowing seamless selection between two circuit paths or operating modes. Its strong mechanical design ensures long-term stability even under frequent manual operation.

Product Description

The MS-12D16 is a precision 3 pin slide switch through hole component designed for PCB mounting applications where durability and reliability are essential. Its through-hole structure provides excellent mechanical anchoring, making it suitable for devices that require repeated switching cycles.

As a 3 terminal slide switch PCB mount solution, it offers a clear tactile response and smooth sliding action, ensuring accurate position feedback for users. The SPDT configuration allows flexible circuit control, including signal routing, mode selection, and power switching in low-current applications.

This PCB through-hole slide switch 3 pin design is widely used in industrial, consumer, and DIY electronics due to its simplicity and reliability.

Key Features

• SPDT functional design for dual-circuit switching

• Reliable through-hole 3-pin slide switch structure

• Strong PCB mounting stability with through-hole pins

• Clear tactile feedback with smooth sliding action

• Compact and durable mechanical construction

• Easy integration into standard PCB layouts

• Long-life performance for repeated operation

Advantages

• High mechanical strength: Through-hole mounting ensures strong PCB fixation

• Stable electrical performance: Low contact resistance for clean signal transmission

• Easy to use: Intuitive sliding mechanism with clear position feedback

• Flexible application: Works as signal selector, mode switch, or power control

• Cost-effective design: Ideal for both prototyping and mass production

The 3 pin slide switch through hole structure makes it especially suitable for designs requiring durability and manual control reliability.

Applications

• Audio equipment and signal routing systems

• Embedded electronic devices and control boards

• Industrial automation equipment

• Test and measurement instruments

• Consumer electronics products

• DIY electronics and prototyping projects

This PCB through-hole slide switch 3 pin is commonly used in devices that require simple yet reliable manual switching control.

Technical Parameters

FAQ

Q1: What is a through-hole 3-pin slide switch used for?
A through-hole 3-pin slide switch is used for selecting between two circuit paths or modes in electronic devices, offering reliable manual control.

Q2: What is the advantage of a 3 pin slide switch through hole design?
A 3 pin slide switch through hole design provides stronger mechanical stability compared to surface mount switches, making it ideal for frequent use applications.

Q3: Where is a PCB through-hole slide switch 3 pin commonly used?
A PCB through-hole slide switch 3 pin is commonly used in audio devices, embedded systems, and industrial control panels.

Q4: What does a 3 terminal slide switch PCB mount mean?
A 3 terminal slide switch PCB mount refers to a switch with three electrical connections designed to be soldered directly onto a printed circuit board for stable operation.

Q5: Can a 3 terminal slide switch PCB mount be used for power switching applications?
Yes, a 3 terminal slide switch PCB mount can be used for low-current power switching by using the common pin and one output pin, but it should always operate within its rated voltage and current limits to ensure safe and reliable performance.

Conclusion

The KKG MS-12D16 through-hole 3-pin slide switch delivers a perfect balance of durability, reliability, and ease of integration. With its SPDT functionality and strong mechanical structure, this PCB through-hole slide switch 3 pin is an excellent choice for engineers seeking a stable and cost-effective switching solution for modern electronic designs.
