Hollow Shaft Encoder

Mastering the Precision of Hollow Shaft Encoders: A Comprehensive Guide

Product Parameter：

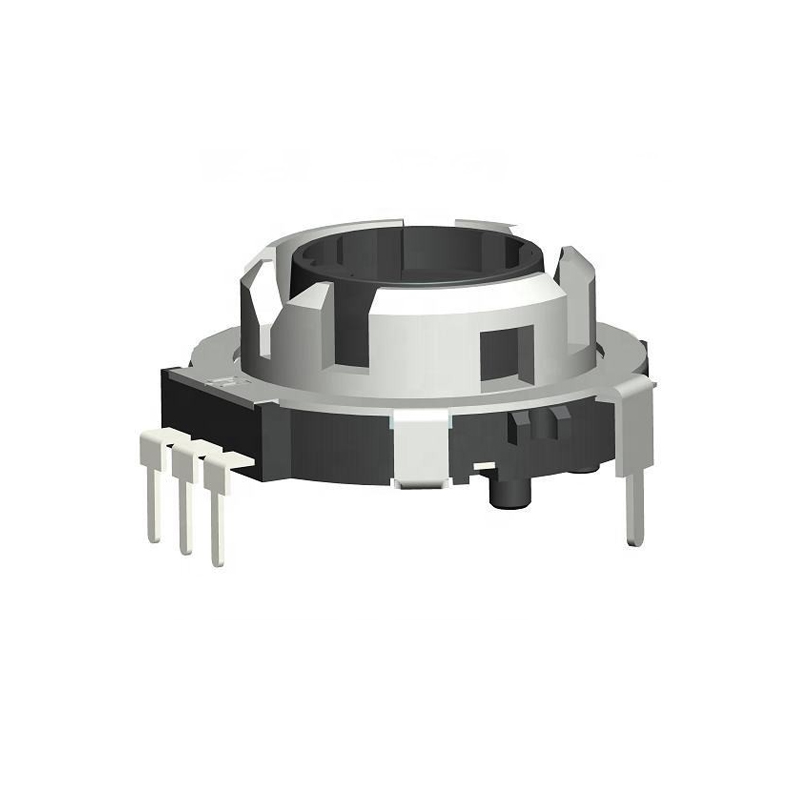

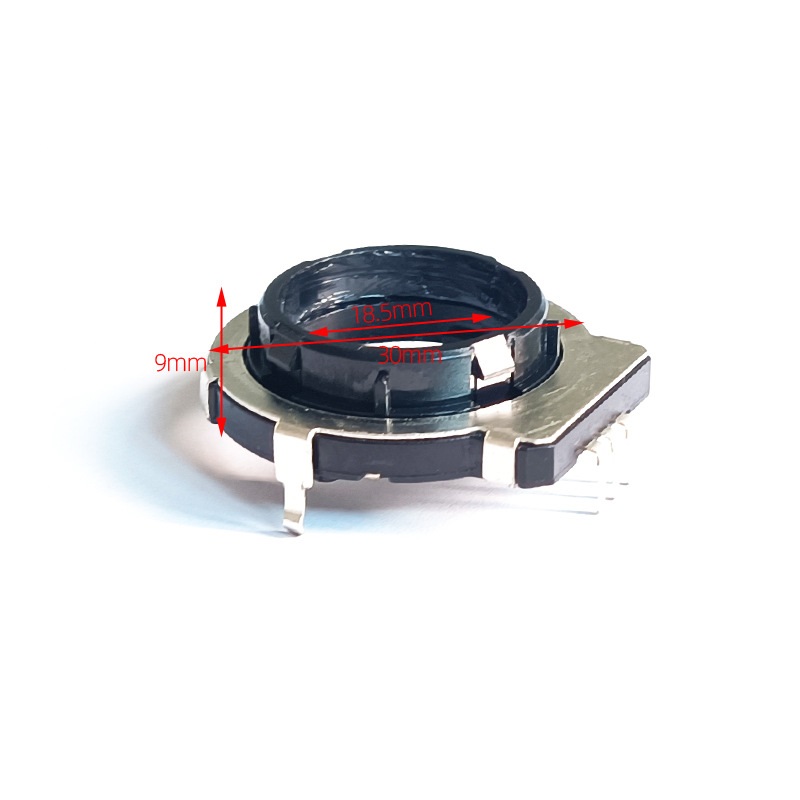

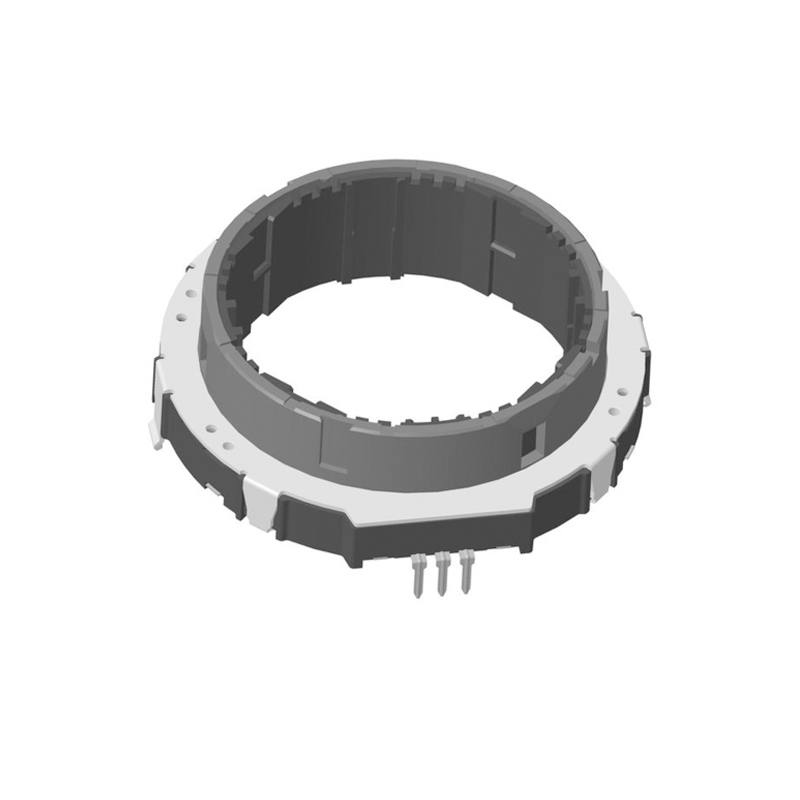

Thin, solid hollow shaft with minimal wobble.

Positioning is obvious, the rotation sound is crisp. Suitable for the design and development of large knob cap products.

Function: Frequency adjustment, volume adjustment, light intensity adjustment menu rotation, speed adjustment, temperature adjustment various parameters control.

Output: AB two-phase - A BC three-phase incremental

Great Advantage

Use temperature: -40 ° C to +85 ° C

Pulse/Positioning: 15P pulse/30CC positioning

Performance:Rotational life:30,000-50,000 times, customised life on request.

Power rating:DC5V10MA

Operating length: 15MM and 25MM two options

Products：

In the realm of industrial automation and motion control, hollow shaft encoders stand as a pivotal technology, bridging the gap between sophisticated machinery and precise movement. These encoders, nestled within the heart of many advanced systems, offer a unique combination of flexibility and accuracy.

hollow shaft encoders are designed to fit into the center of a rotating mechanism, allowing for seamless integration into existing setups without the need for major modifications. This feature not only simplifies installation but also contributes to the overall efficiency and reliability of the system.

Their primary function lies in detecting and encoding the rotational position or velocity of a shaft. By using advanced sensing elements like optical or magnetic technologies, these encoders deliver highly accurate and stable output signals, essential for applications requiring micro-level precision control.

In summary, hollow shaft encoders are the cornerstone of advanced motion control systems, offering unparalleled flexibility, accuracy, and reliability in a compact and versatile package. As industries continue to demand higher levels of precision and efficiency, the role of these encoders in ensuring smooth and reliable operation becomes increasingly crucial.
