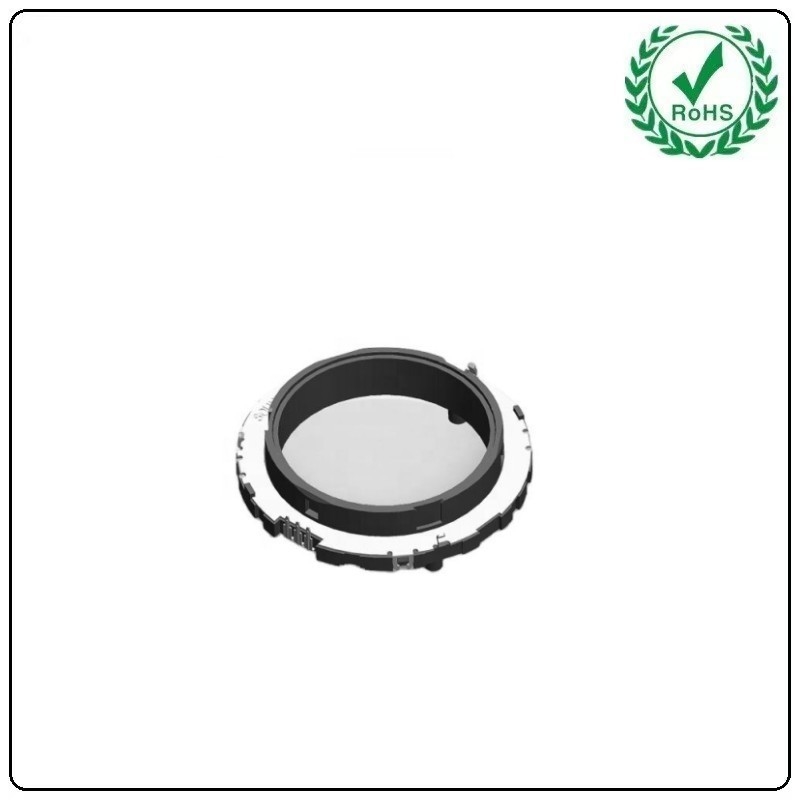

Ultra-Thin Ring Encoder

The Ultra-Thin Ring Encoder is a high-performance rotary control component designed for applications requiring compact structure, accurate rotation detection, and reliable signal output. Combining a slim ring design with Hollow Shaft construction, this encoder provides excellent space efficiency while maintaining stable performance in demanding electronic and industrial systems.

Unlike traditional rotary switches, the Hollow Shaft Rotary Encoder converts mechanical rotation into digital pulse signals, allowing control systems to accurately detect position, speed, and direction. With 360° rotation capability, precise detent feedback, and incremental output signals, this product is widely used in automotive electronics, audio equipment, industrial control systems, and embedded devices.

The 56mm Ring Rotary Encoder adopts a hollow shaft structure that enables direct installation around rotating components, reducing mechanical complexity and improving installation flexibility. Its compact design, long service life, and stable electrical performance make it an ideal choice for modern control interfaces.

Product Features of Ultra-Thin Ring Encoder

1. Ultra-Thin Ring Structure

The unique ring-shaped design allows the encoder to achieve excellent space utilization. Compared with conventional rotary encoders, the Ring Encoder provides a more compact solution for applications where installation space is limited, especially in automotive dashboards and slim electronic devices.

2. Hollow Shaft Design for Easy Installation

The Hollow Shaft Encoder allows direct mounting around existing shafts or rotating components without requiring complex coupling mechanisms. This design reduces installation time, improves alignment accuracy, and enhances overall system reliability.

3. Accurate Incremental Signal Output

The Incremental Rotary Encoder generates accurate A/B phase signals to detect rotation direction and movement position. With resolution options of 10 pulses/360° and 20 pulses/360°, it provides precise control feedback for different applications.

4. Reliable Mechanical Performance

Designed for frequent operation, the encoder provides more than 30,000 rotation cycles. The durable mechanical structure ensures stable performance under continuous usage conditions.

5. Excellent Environmental Adaptability

The Ultra-Thin Ring Encoder operates reliably in a wide temperature range from -30℃ to 80℃, with storage capability from -40℃ to 85℃. This makes it suitable for various industrial and automotive environments.

6. High Compatibility and Safety Standards

The product complies with RoHS requirements and supports strict quality management systems including ISO9001 and ISO/TS16949 certification standards, ensuring consistent quality and reliable operation.

Advantages of Ultra-Thin Ring Encoder

Space-Saving Control Solution

The compact hollow ring structure provides significant advantages for modern electronic equipment where internal space is limited. It allows manufacturers to create thinner and more integrated control panels without sacrificing performance.

Improved User Interaction

With clear tactile feedback and precise click positioning, the encoder offers a smooth and intuitive adjustment experience. Users can easily perform functions such as volume control, menu selection, and parameter adjustment.

Stable and Long-Term Operation

The high-quality internal components provide excellent durability and resistance to mechanical wear. This reduces maintenance requirements and improves product reliability during long-term operation.

Flexible Customization Options

Professional encoder manufacturers can provide customized solutions including shaft dimensions, resolution, output signals, terminal types, and mechanical structures to meet different customer requirements.

Applications of Ultra-Thin Ring Encoder

Automotive Audio Systems

The Car Audio Rotary Encoder is widely used in vehicle entertainment systems for volume adjustment, function selection, and user interface control. The hollow shaft ring structure helps create compact and modern dashboard designs.

Consumer Electronics

The encoder is suitable for audio equipment, home appliances, smart devices, and electronic control panels where accurate adjustment and reliable feedback are required.

Industrial Automation Equipment

In industrial control systems, the encoder provides precise parameter adjustment for machines, automation equipment, and control interfaces. Its durable structure allows stable operation in demanding environments.

Medical and Laboratory Equipment

Medical instruments and laboratory devices often require accurate and reliable input components. The Ultra-Thin Ring Encoder provides precise control and long-term stability for professional equipment.

Embedded Systems and Control Panels

The compact design makes it suitable for embedded applications, development equipment, and customized electronic products requiring digital rotary input.

Why Choose Our Ultra-Thin Ring Encoder?

As an experienced encoder manufacturer, KKG focuses on providing reliable rotary control solutions for global customers. With strict quality inspection processes, advanced production technology, and international certifications including ISO9001, ISO/TS16949, ENEC, RoHS, REACH, and CQC, the company delivers consistent product quality.

From product design and manufacturing to testing and after-sales support, customers can receive complete one-stop service solutions. The Ultra-Thin Ring Encoder is developed to meet the growing demand for compact, accurate, and durable control components in modern electronic applications.

FAQ About Ultra-Thin Ring Encoder

Q1: What is an Ultra-Thin Ring Encoder?

An Ultra-Thin Ring Encoder is a compact rotary encoder featuring a ring-shaped structure and hollow shaft design. It converts mechanical rotation into digital signals for accurate position and control feedback.

Q2: What is the difference between a hollow shaft encoder and a standard rotary encoder?

A hollow shaft encoder allows direct mounting around a rotating shaft, reducing the need for additional coupling components. A standard rotary encoder usually requires external mechanical connections for installation.

Q3: What applications use a 56mm Ring Rotary Encoder?

The 56mm Ring Rotary Encoder is commonly used in automotive audio systems, industrial control panels, consumer electronics, and embedded devices that require compact rotary control.

Q4: Can the Ring Encoder be customized?

Yes. Manufacturers can customize the encoder according to customer requirements, including resolution, output signal, shaft structure, mounting method, and electrical specifications.

Q5: How long is the service life of this encoder?

The Ultra-Thin Ring Encoder is designed for long-term operation and provides a mechanical life of more than 30,000 cycles under standard testing conditions.
