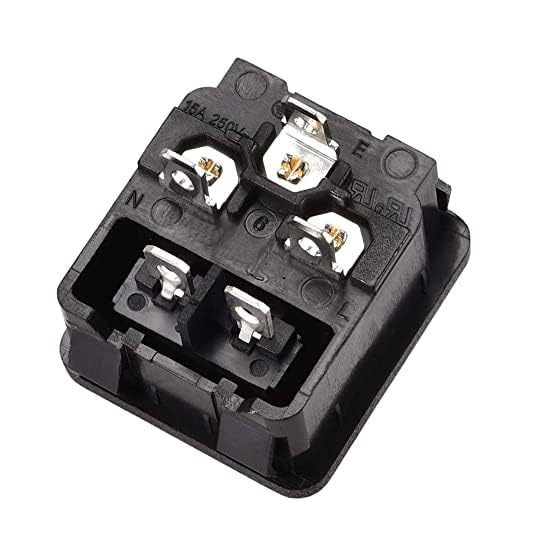

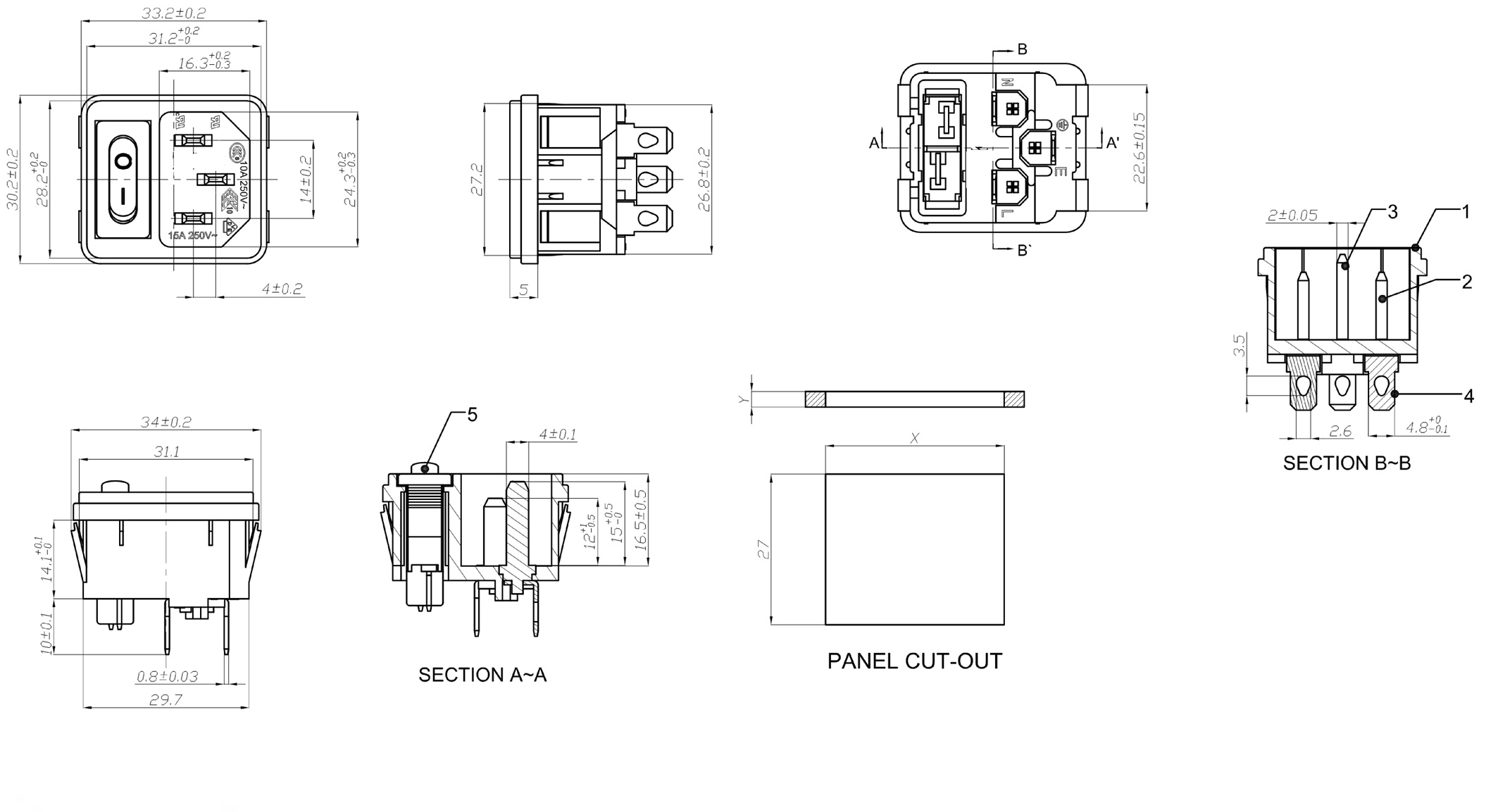

KKG JR-101-1FSA2-01: Snap-in Power Module with Fuse

Blackmagic Design IEC Power Socket's Product Introduction

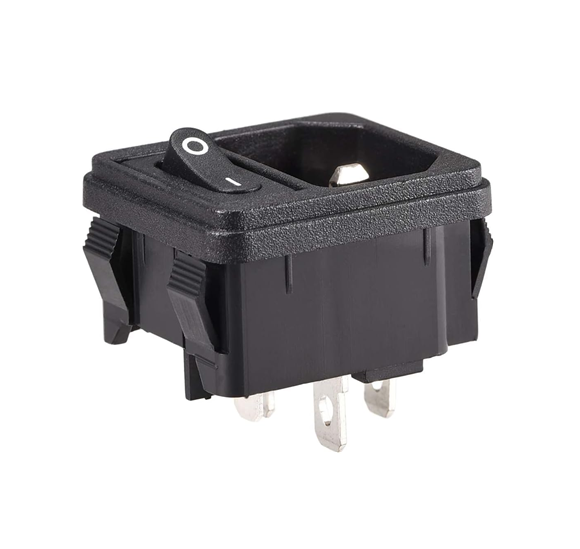

The KKG JR-101-1FSA2-01 is expertly designed to optimize both safety and manufacturing efficiency. This comprehensive power module consolidates a universal C14 inlet, a protective fuse holder, and a vibrant red illuminated power switch into a single, compact housing. The standout feature of this iec socket is its tool-free, snap-in design, which allows for rapid installation into any compatible panel, dramatically cutting down on assembly time and labor costs. It is the perfect choice for manufacturers seeking to streamline production while delivering a high-quality, professional-grade power interface.

As a leading example of modern iec power connectors, the JR-101-1FSA2-01 places a strong emphasis on user safety. The integrated fuse holder offers essential protection against overcurrent events, shielding sensitive internal components from potential damage. The bright, red-illuminated rocker switch provides unmistakable visual confirmation of the device's power status, reducing the risk of accidental operation and enhancing user safety. By combining these critical functions, this module not only simplifies your design but also adds a layer of safety and reliability that customers can depend on.

Grainfather G30 IEC Power Socket's Product Operating Principle

1. Effortless Installation: The module is designed with flexible retaining tabs that securely lock it into a panel cutout with simple hand pressure.

2. Integrated Control: The rocker switch functions as the main power control, enabling users to safely turn the device on and off from a single point.

3. Circuit Safety: The fuse is positioned in the circuit to immediately and automatically disconnect power if an electrical overload is detected.

DBX 231s Graphic Equalizer IEC Power Socket's Product Functions

1. All-in-One Unit: Combines an iec outlet, a lighted switch, and a fuse holder to reduce panel clutter and simplify internal wiring.

2. Quick Assembly: Features a snap-in mounting system that allows for fast, tool-free installation, ideal for volume production.

3. Visual Safety Cue: A bright, illuminated switch provides clear and immediate feedback on the device's power status.

4. Overcurrent Protection: The built-in fuse holder offers essential protection for the device against damaging electrical surges.

• IT & Networking: Serves as the power entry module for network-attached storage (NAS) devices and small server cases, like those from Synology or QNAP.

• Retail & Point-of-Sale (POS): Used in POS terminals and receipt printers, such as models from Epson, where a compact, all-in-one power solution is required.

• Specialty Audio Visual: Integrated into professional AV equipment like video switchers and signal processors from brands like Blackmagic Design, ensuring reliable power and safety.

KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!

We ensure high production efficiency and ship your order within 7 days after payment.
