Product Details
Place of Origin: Dongguan China
Brand Name: KKG
Certification: CE / SGS / ISO9001
Model Number: AE-SJ58
Payment & Shipping Terms
Minimum Order Quantity: 500pcs
Price: Negotiate
Packaging Details: Plastic bag/Reel for goods+ inner box bubble+ inner box in Carton
Delivery Time: 3-5 Days
Payment Terms: T/T, L/C, Western Union
More Details please find the below websties:

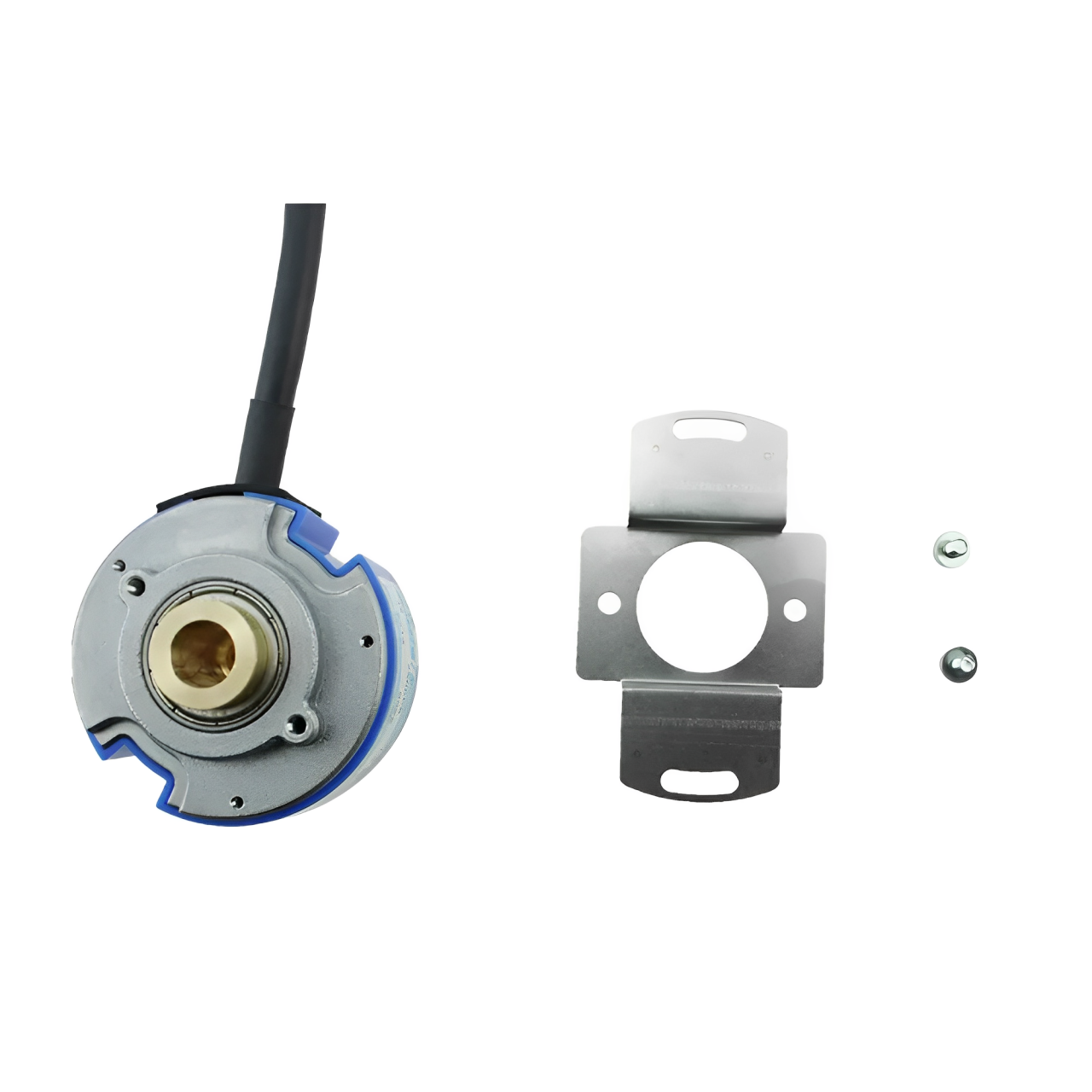

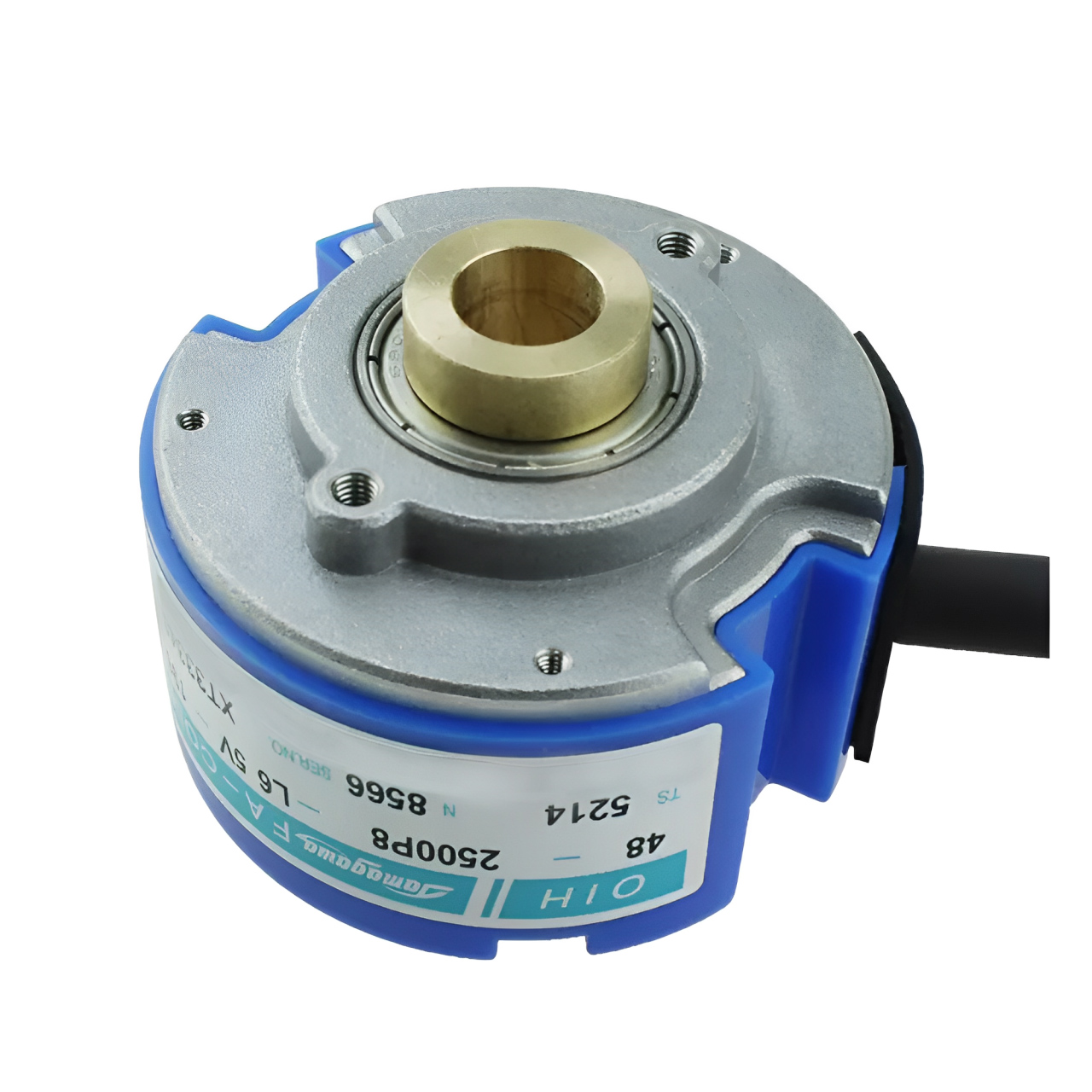

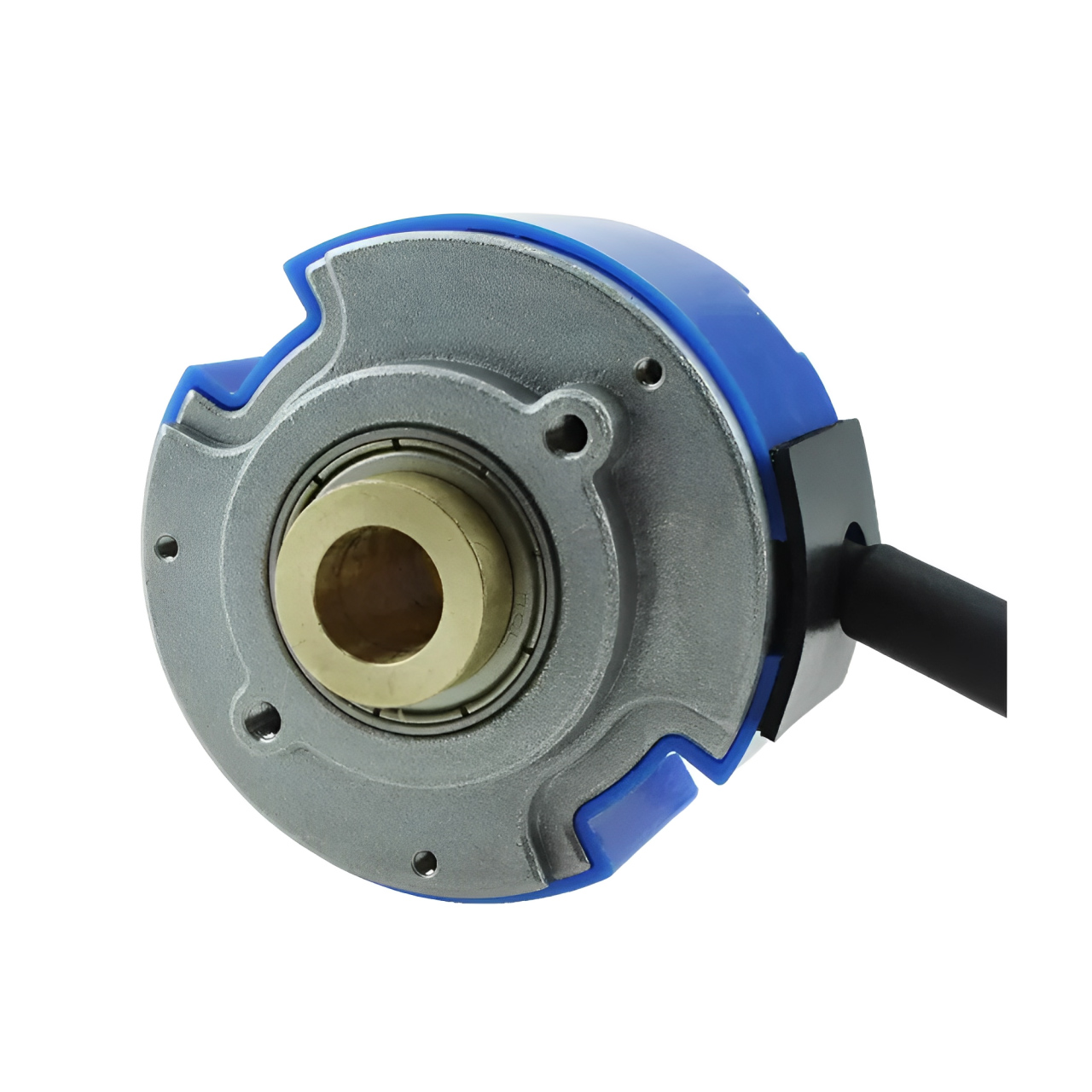

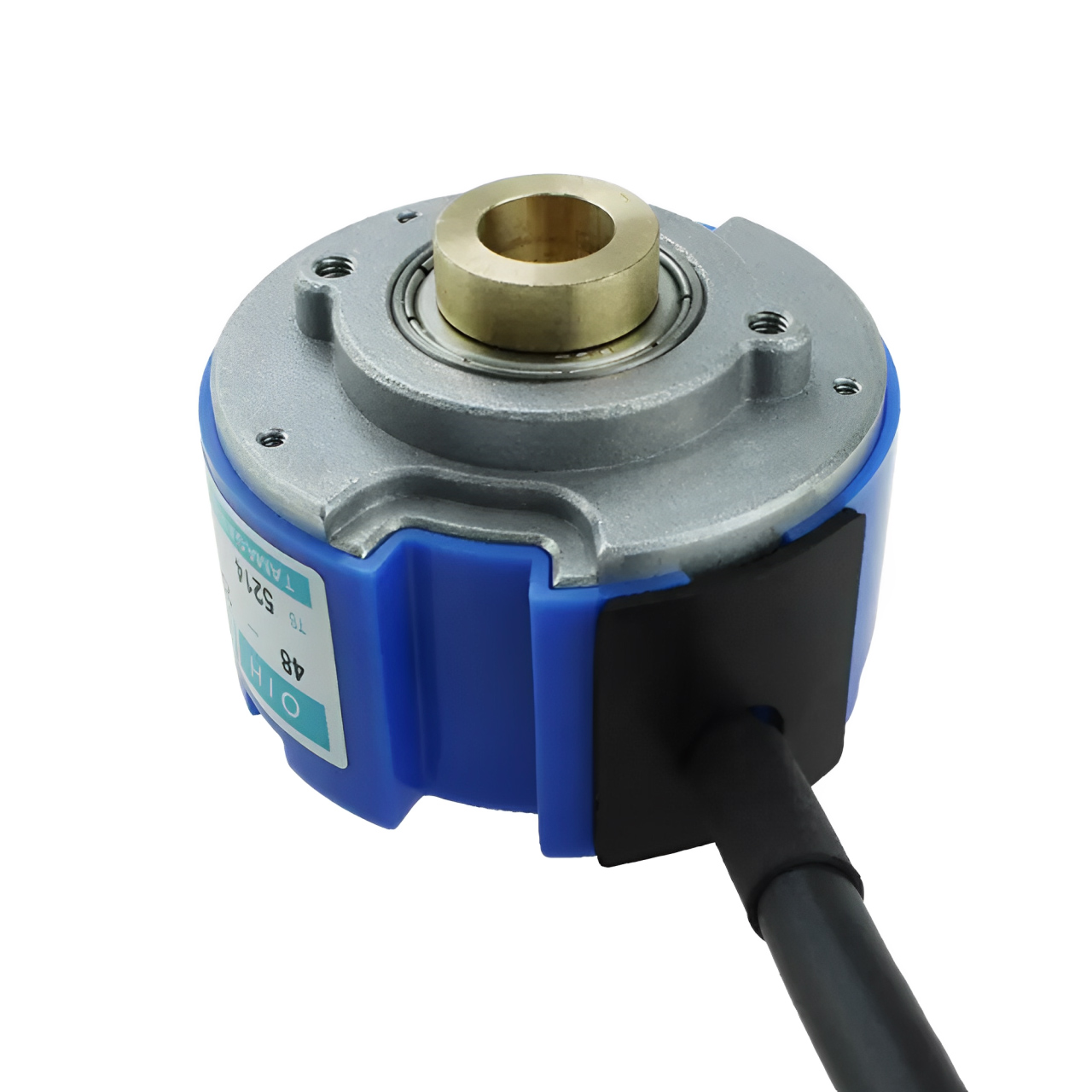

| Characteristics | Specification |
|---|---|
| Outer Diameter | 48mm |
| Working Voltage | DC5v |
| Pulse | 2400P/R |
| Number of Poles | 8 Poles |
| Response Frequency | 200 Khz |
| Temperature Range | -20~ 85℃ |
| Protection Class | IP40 |
Siemens PLC Control Systems Incremental Encoder's Product Operating Principle
Photoelectric Sensing Mechanism
The code disk features equidistant light-transmitting/opaque slits at its edge. A light source and photoelectric sensor are positioned on opposite sides. Rotation generates quadrature sine wave signals with a 90° phase shift, enabling precise motion tracking.
Direction and Position Detection
Rotation direction: Determined by phase order.
Zero reference: The Z-phase outputs one index pulse per revolution for system homing.
Interpolation Technology
Analog sine waves are digitized via 16x interpolation, boosting resolution. Example: A 2048-line code disk achieves 32,768 PPR.
ABB Robotic Joints Incremental Encoder's Product Functions
Quadrature Signal Decoding
AB-phase 90° quadrature signals decode rotation direction, while the Z-phase provides index pulse alignment, ensuring servo motor start/stop positioning with <±0.1°
High-Speed RPM Feedback
Supports 500kHz pulse response frequency for real-time speed monitoring Integrated Modbus protocol synchronizes data with drives to optimize PID tuning and minimize overshoot.
Programmable PPR Switching
Adjust resolution via external DIP switches or software commands, adapting to low-speed counting or high-speed machining.
DMG Mori Spindle Systems Incremental Encoder's Product Applications
Industrial Automation
Example: Integrated into Siemens PLC control systems for conveyor belt positioning.
Principle: Uses pulse signals to achieve ±0.1mm positioning accuracy, enhancing production line efficiency and repeatability.
Robotics
Example: Embedded in ABB robotic joints for multi-axis motion tracking.
Principle: Delivers real-time angular feedback via A/B/Z-phase signals, enabling ±0.01° synchronization for precision welding/assembly.
CNC Machining
Example: Deployed in DMG Mori spindle systems for speed/torque monitoring.
Principle: Tracks spindle RPM via 10,000 PPR resolution, adjusting cutting feed rates to maintain.
KKG Electronics, each part of the use of temperature-resistant materials, high-temperature testing equipment 260 ℃ for 5 minutes, the appearance of the product does not change!
2025-02-27
High effiency of production, shipped in 1 day after payment.
Q1: What industries do your PCB/PCBA services support?
A: We provide PCB/PCBA solutions for industries such as healthcare, automotive, energy, measurement instruments, and consumer electronics.
Q2: Can we request samples?
A: Absolutely! We offer free samples, with customers only needing to cover the shipping fees.
Q3: How are products packaged?
A: We ensure secure packaging by using inner boxes and durable outer cartons to protect the goods during transit.
Q4: How do you guarantee product quality?
A: All products are rigorously tested at 100% before shipment to ensure reliability and long-lasting performance.
Q5: How is the shipping fee determined?
A: Shipping costs are calculated based on the order quantity and the delivery destination.
