Micro Limit Switch

   Micro Switches are generally based on the basic type without an auxiliary press attachment, with derivatives for  small and large stroke types. Depending on the need, different auxiliary push assist parts can be added. Depending on the different press-assist components added to the Switch, they can be categorized into push-button, spring-roller, lever-roller, short-arm, and long-arm forms.

   Micro switches are used for control and protection in equipment that requires frequent circuit switching, and are widely used in electronic equipment, instrumentation, power systems, household appliances, electrical equipment, security, automotive and other fields.

Product Features

Micro Limit Switch‘s feature

1. Precision shrapnel structure, to achieve fast switching and long life feel great!

2.Plug and play circuit board terminals, solder terminals, bent foot terminals, #110 quick connect terminals,

and a variety of shapes.

3. Driving handle, a variety of operating force for product structure design.

4. A variety of current options, 0.1/1A/3A/5A/10A125/250VAC

5. Obtained safety certification UL/CUL/TUV/CQCUL File No.:E508056

6.Comply with RoHS REACH

Product Description

Limit micro switch's description

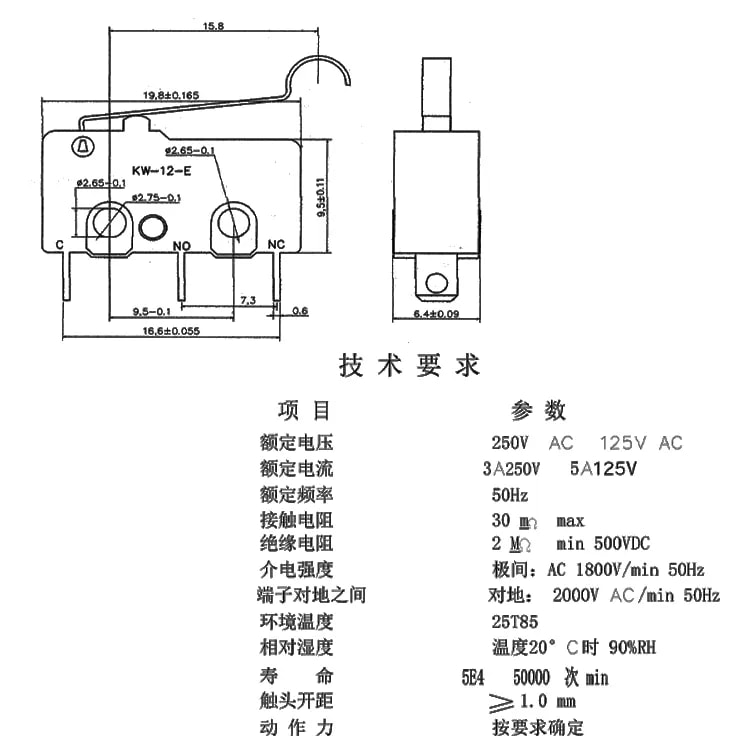

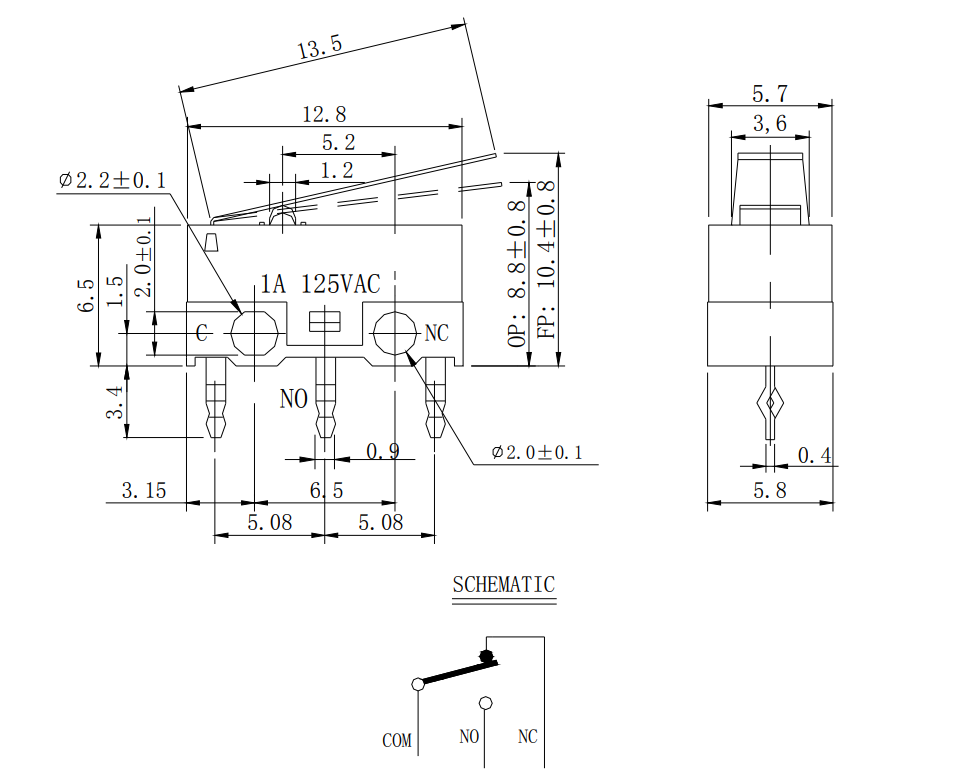

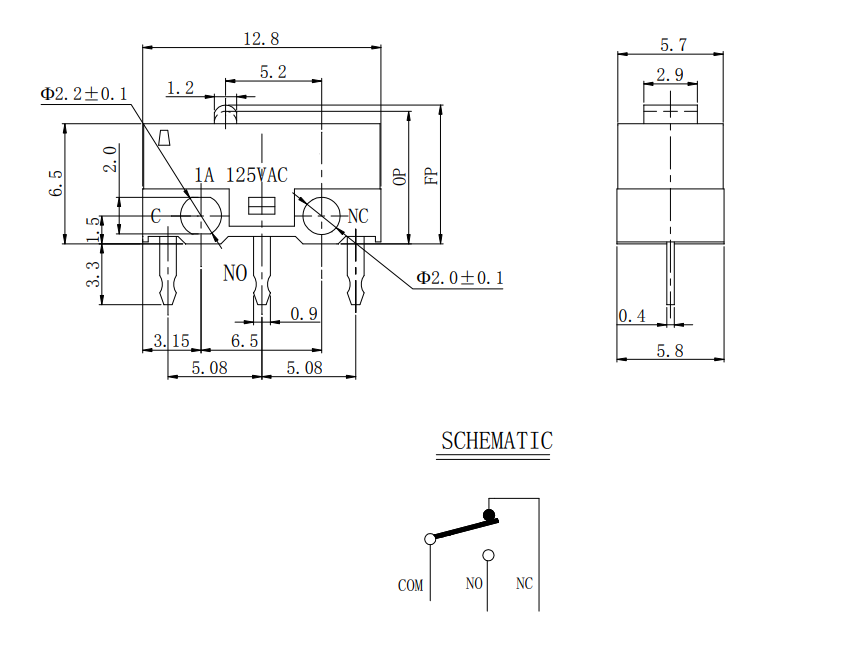

Product Specification

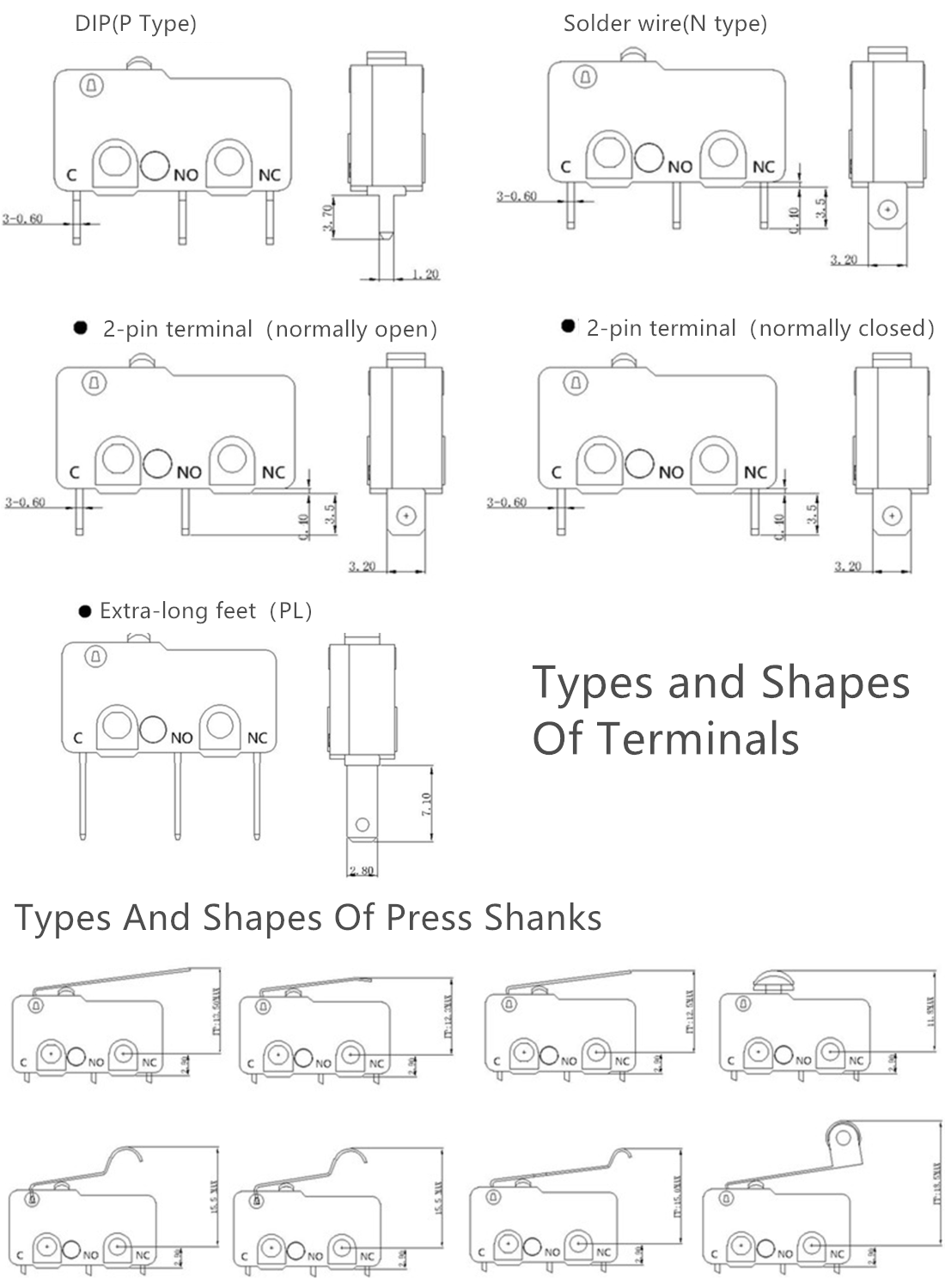

Limit switch micro's terminal and press shank

Product Application

micro switch limit switch's application

Consumer Electronics: Keypads, remote controls, and electronic toys.

Automotive: Control panels, dashboards, and safety systems.

Industrial Equipment: Machinery control, automation systems, and diagnostic tools.

Medical Devices: Equipment interfaces and diagnostic instruments.

Home Appliances: Washing machines, microwaves, and air conditioners.

Telecommunications: Network devices and communication equipment.
