A Rocker Switch is an electrical SWITCH that rocks back and forth to open or close an electrical circuit.When one side of the switch is pressed,the opposite side rises,allowing users to easily turn power ON or OFF.Rocker switches are among the most common switch types used in consumer electronics,industrial equipment,household appliances,automotive systems,and power distribution devices.
Unlike Push Button Switches that return to their original position after being pressed,a rocker switch typically stays in its selected position until it is manually switched again.Many rocker switches also feature illuminated indicators,making it easy to identify the switch status in low-light environments.
How Does a Rocker Switch Work?
A rocker switch operates by controlling the flow of electricity through internal electrical contacts.
The basic working process is simple:
The user presses one side of the rocker.
The internal actuator moves.
Metal contacts either connect or separate.
Current begins or stops flowing.
The connected device turns ON or OFF.
Inside the switch,a spring mechanism provides a positive"click"feeling,ensuring reliable switching and preventing accidental activation.
Main Components of a Rocker Switch
A standard rocker switch consists of several key parts:
Rocker Actuator–The external button users press.
Housing–Protects the internal mechanism.
Electrical Contacts–Conduct or interrupt current.
Spring Mechanism–Provides tactile feedback.
Terminals–Connect the switch to the electrical circuit.
Indicator Lamp(Optional)–LED or neon light showing power status.
Types of Rocker Switches
Different applications require different rocker switch configurations.
1.ON-OFF Rocker Switch
The most common type.
One ON position
One OFF position
Used for power control
Applications include:
Lamps
Power strips
Fans
Household appliances
2.ON-ON Rocker Switch
Instead of turning OFF,this switch selects between two different circuits.
Common uses include:
Mode selection
Fan speed control
Equipment settings
3.ON-OFF-ON Rocker Switch
Provides three positions:
ON
OFF
ON
Frequently used in industrial machinery and control panels.
4.Illuminated Rocker Switch
Contains a built-in LED or neon indicator.
Advantages:
Easy status identification
Attractive appearance
Better nighttime operation
Common colors:
Red
Green
Blue
White
Amber

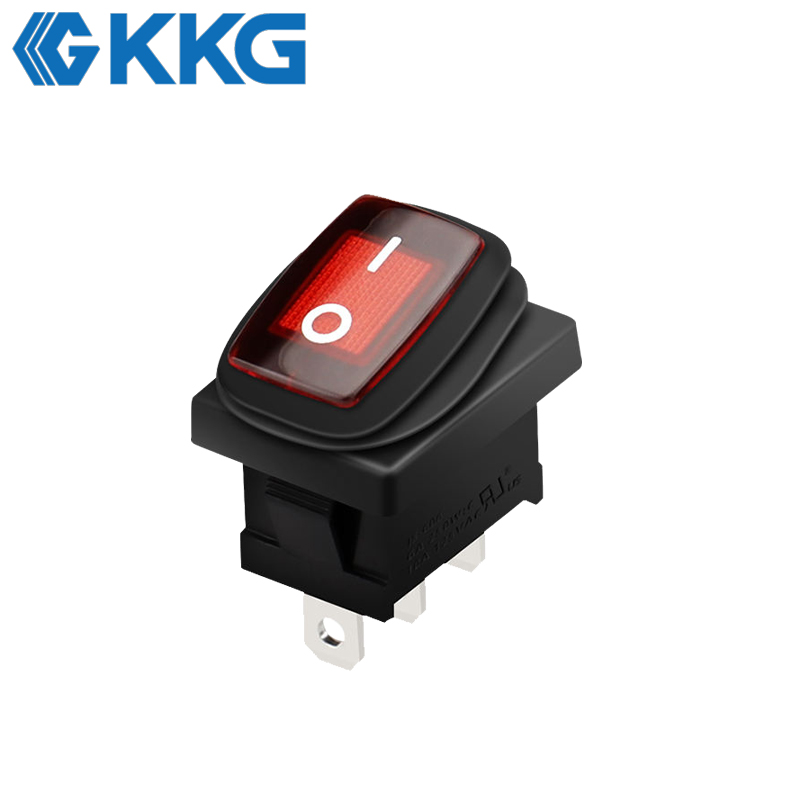

5.Waterproof Rocker Switch
Designed for harsh environments.
Features include:
Waterproof cover
Dust resistance
Corrosion resistance
Often used in:
Marine equipment
Outdoor machinery
Automotive applications
Advantages of Rocker Switches
Rocker switches are popular because they offer several benefits.
Easy Operation
The large rocker surface allows quick switching with a finger or even while wearing gloves.
Long Service Life
High-quality rocker switches can withstand tens of thousands or even hundreds of thousands of operating cycles.
Cost-Effective
Simple construction makes rocker switches affordable for mass production.
Wide Voltage Range
Available for:
12V DC
24V DC
125V AC
250V AC
Higher industrial voltages
Multiple Sizes
Common panel cutouts include:
Mini rocker switches
Standard rocker switches
Large industrial rocker switches
Common Applications
Rocker switches are found in countless electrical products.
Household Appliances
Examples include:
Coffee makers
Electric kettles
Air purifiers
Vacuum cleaners
Electric heaters
Consumer Electronics
Used in:
Computer power supplies
Audio equipment
Gaming accessories
Chargers
Industrial Equipment
Ideal for:
Control cabinets
Machine tools
Test instruments
Manufacturing equipment
Automotive
Frequently installed in:
Cars
Trucks
RVs
Boats
Motorcycles
Medical Equipment
Used for:
Diagnostic devices
Laboratory equipment
Medical power supplies
How to Choose the Right Rocker Switch
When selecting a rocker switch,consider the following factors:
Current Rating
Choose a switch rated for the required current,such as 6A,10A,or 16A.
Voltage Rating
Ensure compatibility with your application's AC or DC voltage.
Number of Poles and Throws
Common configurations include:
SPST(Single Pole Single Throw)
SPDT(Single Pole Double Throw)
DPST(Double Pole Single Throw)
DPDT(Double Pole Double Throw)
Mounting Method
Options include:
Panel mount
Snap-in mount
Screw mount
Environmental Protection
For outdoor or harsh environments,select an IP-rated waterproof rocker switch.
Maintenance Tips
To maximize service life:
Keep the switch clean and free of dust.
Avoid exceeding its electrical ratings.
Check terminal connections regularly.
Replace damaged switches immediately.
Use waterproof models in wet environments.
FAQ
What is a rocker switch used for?
A rocker switch is used to turn electrical devices or circuits ON and OFF or to switch between different operating modes.
How does a rocker switch work?
Pressing one side of the switch moves internal contacts together or apart,allowing or stopping the flow of electricity.
What is the difference between a rocker switch and a Toggle Switch?
A rocker switch uses a rocking actuator,while a toggle switch uses a lever that moves up and down.Both perform similar switching functions but have different operating styles.
Are rocker switches waterproof?
Some rocker switches are waterproof and feature sealed housings with IP-rated protection for outdoor,marine,and automotive applications.
Can rocker switches handle high current?
Yes.Depending on the model,rocker switches are available with current ratings ranging from a few amps to over 20A for heavy-duty applications.
How long does a rocker switch last?
Most quality rocker switches are rated for 50,000 to 100,000 or more operating cycles,depending on their design and application.
