Miniature DPDT Slide Switch: Comprehensive Technical Overview
Introduction

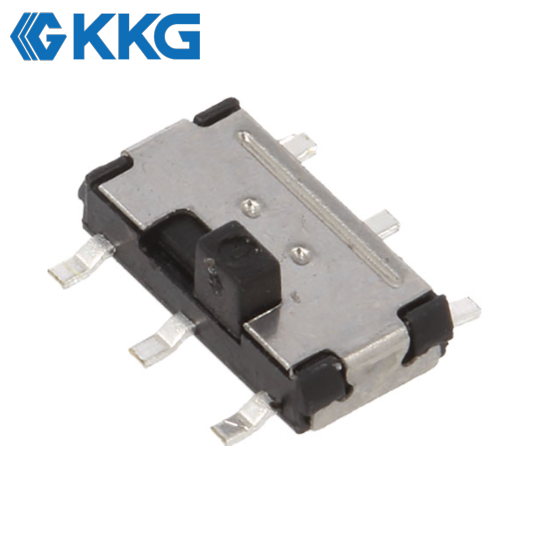

The Miniature Double Pole Double Throw (DPDT) Slide SWITCH is a compact electromechanical component designed for circuit switching applications. Measuring typically between 4.5mm to 12mm in length, these switches offer reliable performance in space-constrained environments. Their DPDT configuration provides two separate circuits that can be simultaneously switched between two different paths, making them versatile for various electronic applications.
Technical Characteristics
Electrical Specifications
Miniature DPDT Slide Switches typically feature:
Contact Rating: 0.3A to 3A at 50V DC depending on model
Contact Resistance: ≤20mΩ initial value
Insulation Resistance: ≥100MΩ at 100V DC
Dielectric Strength: 250V AC for 1 minute between contacts and terminals
Mechanical Specifications
Operating Force: 150g to 500g depending on design
Actuator Travel: 1.5mm to 3mm typical slide distance
Mechanical Life: 10,000 to 50,000 cycles depending on materials
Termination Style: Through-hole (THT) or surface mount (SMD) with 2.54mm pitch common
Environmental Specifications
Operating Temperature: -20°C to +85°C standard range
Storage Temperature: -40°C to +105°C
Humidity Resistance: 85% RH at 40°C for 96 hours
Vibration Resistance: 10Hz to 55Hz, 1.5mm amplitude
Material Composition
The construction of miniature DPDT Slide Switches typically includes:
Housing: PBT (Polybutylene Terephthalate) or Nylon 6/6 for durability
Contacts: Phosphor Bronze or Silver Alloy with gold plating (0.5-2μm) for enhanced conductivity
Actuator: Stainless Steel or Nickel-Silver Alloy for corrosion resistance
Terminals: Copper Alloy with tin or gold plating
Application Scenarios
Consumer Electronics
Miniature DPDT slide switches are extensively used in portable devices due to their compact size. Common applications include:
Mode selection in digital cameras (auto/manual focus switching)
Function switching in handheld gaming consoles
Power management in wireless earbuds charging cases
Industrial Control Systems
Their reliability makes them suitable for industrial environments:
Signal routing in PLC (Programmable Logic Controller) modules
Test mode selection in manufacturing equipment
Circuit configuration in HVAC control boards
Medical Equipment
The precision and reliability of these switches meet medical requirements:
Function selection in portable diagnostic devices
Mode switching in patient monitoring equipment
Calibration controls in laboratory instruments
Automotive Electronics
Automotive-grade versions are used in:
Dashboard control modules with -40°C to +125°C operating range
Seat adjustment memory systems
Lighting configuration switches with IP67 rated versions
Maintenance and Care Procedures
Cleaning Methods
Proper cleaning extends switch lifetime:
Use isopropyl alcohol (99% purity) with lint-free swabs
Apply 5-10 psi compressed air for dust removal
Avoid ultrasonic cleaning for non-sealed versions
Operational Best Practices
Operate within 60-80% of maximum rated current for longest life
For SMD versions, limit reflow temperature to 260°C max
Apply contact lubricant (PFPE-based) every 5,000 cycles in high-use applications
Storage Conditions
Proper storage prevents premature aging:
Maintain 40-60% relative humidity
Store in anti-static bags with desiccant
Rotate stock using FIFO (First In First Out) method
Failure Prevention
Implement debounce circuits (0.1-10ms) in digital applications
Use TVS diodes when switching inductive loads
For high-vibration environments, specify positive detent versions
