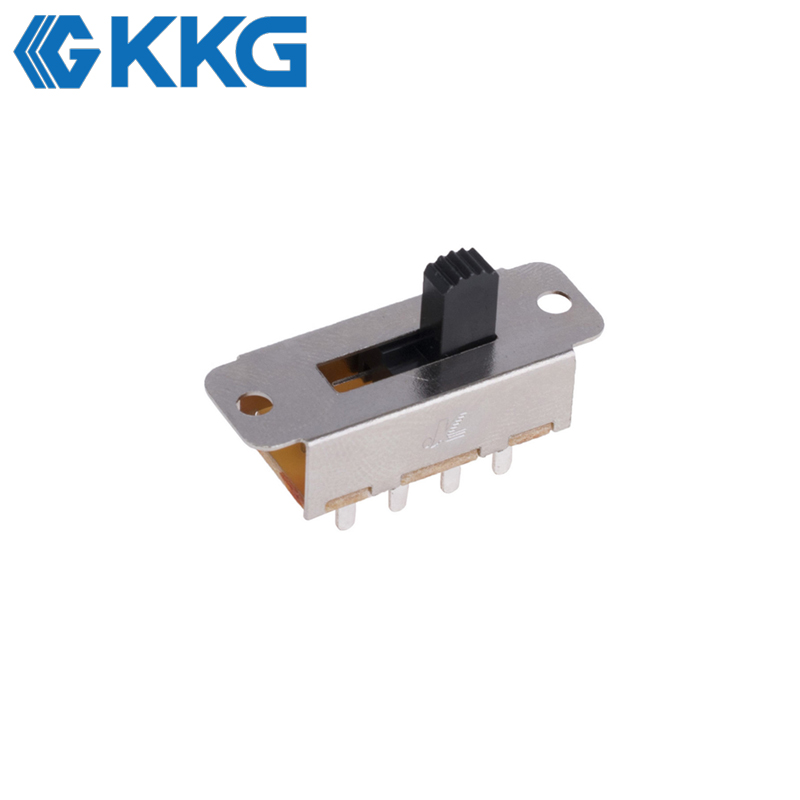

8-Pin 3-Position Panel Mount Slide Switch

Product Description
The panel mount slide switch is a high-performance electrical component designed for reliable manual control in a wide range of electronic applications. Built with a robust structure and precise engineering, this switch supports a rating of 1.5A, 125V AC, ensuring stable performance in low-to-medium power circuits. Its durable construction allows operation in temperatures ranging from -25℃ to +85℃, making it suitable for both indoor and demanding environments.

Unlike a typical micro switch, this panel-mounted design offers intuitive sliding actuation and enhanced user control. The integrated mounting system ensures firm installation on control panels, providing both mechanical strength and operational stability. It is an ideal alternative to a panel mount micro switch when multi-position selection is required.

Technical Specifications

Key Features

• High Reliability: Rated at 1.5A, 125V AC with long operational life

• Strong Insulation: High insulation resistance ensures safe operation

• Durable Construction: Performs reliably across a wide temperature range

• Smooth Sliding Action: Optimized travel and force for precise control

• Panel Mount Design: Easy and secure installation on equipment panels

• Low Contact Resistance: Enhances electrical efficiency

Advantages
The panel mount slide switch combines the durability of a panel mount micro switch with the simplicity of a sliding mechanism. Compared to traditional micro switch designs, it offers better tactile feedback and easier multi-position control. Its panel mount capability enhances structural stability, reducing vibration impact and extending service life. Additionally, the compact design helps optimize space in control panels and electronic devices.

Applications
This versatile switch is widely used in:

• Consumer electronics and home appliances

• Industrial control panels

• Audio and communication equipment

• Automotive electronics

• Testing and measurement devices

Its reliable performance makes it ideal for systems requiring consistent manual switching and multi-mode control.

FAQ

Q1: What is the difference between a panel mount slide switch and a micro switch?
A: A panel mount slide switch uses a sliding actuator for position control, while a micro switch typically uses a snap-action mechanism. Slide switches are better suited for multi-position selection.

Q2: Can this switch be used in high-vibration environments?
A: Yes, the panel mount design ensures secure installation, making it suitable for environments with moderate vibration.

Q3: Is it compatible with PCB mounting?
A: Yes, it can be integrated into PCB systems while also being fixed to panels for added stability.

Q4: What industries commonly use this product?
A: It is commonly used in electronics, industrial equipment, automotive systems, and consumer devices.

Workshop & Power Tools: Used as the primary speed and mode selector on rotary tools like the Dremel 4000, allowing users to choose between different speed ranges.

Home Appliances: Serves as the main function switch on household appliances, for example, a space heater like the Lasko 754200 Ceramic Heater to select between Fan/Low Heat/High Heat modes.

Professional Audio Equipment: Integrated into studio rack gear like the ART Pro-VLA II compressor to switch both stereo channels between different compression ratios or attack settings.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1:Are you a factory or trade company?

A:We are factory with more than 15 years of experience specialized in producing switches, sockets, connetors, DC Jacks, etc.

Q2: What is the turnaround time for rapid prototyping of modified designs?

A: Prototypes are delivered in 7-10 working days post-design approval. Submit CAD files and specifications to activate priority engineering review.

Q3: How do you ensure long-term product availability for legacy systems?

A: We guarantee 15-year lifecycle support with EOL (End-of-Life) notifications 24 months in advance and bridge manufacturing options.

Q4: Can you accept small order? Like 1000 pcs or 2000 pcs?
A: Sure, but we suggest you buy more, because it really can save your time and freight charge in the near future.

Q5:What kind of files are required for quotation?
A: For PCB quotation, please provide the Gerber data / files and indication of related technical requirements as well as any special.
