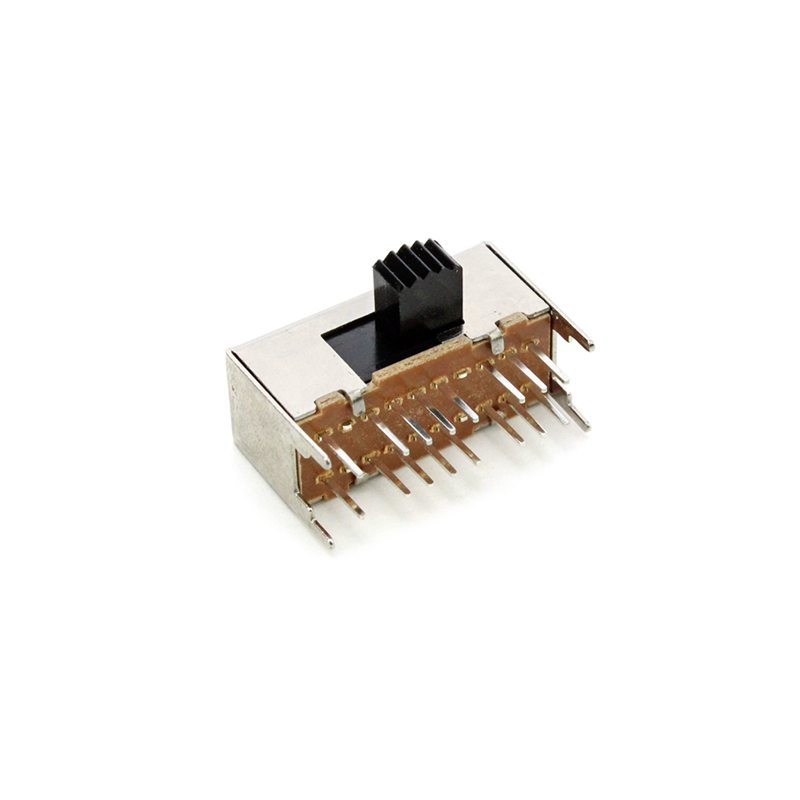

4-Pole 2-Position Right Angle Slide Switch

Level1Techs KVM Slide Switch's Product Introduction

The KKG SK42H03 is a high-performance slide switch engineered for complex signal routing and dual-mode selection. Its advanced 4P2T configuration allows a single slide switch button to manage four separate circuits, making it vastly more capable than a simple on off slide switch. The robust through-hole design ensures a secure and lasting connection to the board, ideal for applications requiring mechanical strength. It's a perfect choice for consolidating the function of multiple switches into one, offering great value at its slide switch price point.

Schiit Mjolnir Slide Switch's Product Operating Principle

Right-Angle Stability: The through-hole pins are soldered into the PCB, allowing the switch body to sit flat while the side-actuator provides operation parallel to the board, perfect for edge-of-board access.
Quad-Pole Actuation: A single actuator is internally linked to four separate poles (contacts), allowing them to switch in perfect unison between their two respective throws.
Horizontal Operation: The side-mounted actuator provides a simple, durable physical interface for the user to manually change the state of the switch between its two latching positions.

Bosch Slide Switch's Product Functions

Complex Signal Routing: Enables the simultaneous switching of four separate signals, such as two balanced stereo audio signals (L+, L-, R+, R-), between two different sources.
Multi-Circuit Power Control: Can be used to control the power state of four different low-power subsystems within a larger device with a single action.
Component Consolidation: Replaces the need for four individual SPDT switches, saving significant board space, simplifying the user interface, and reducing assembly complexity.
Advanced Test Configuration: Provides a reliable physical method for setting up complex test scenarios, routing four signals to two different test points or configurations in a test jig.

Professional Audio Equipment: Used as an input selector on a high-end headphone amplifier like the Schiit Mjolnir, to switch between two balanced stereo XLR inputs.

KVM Switches: Serves as the core switching mechanism in a 2-port KVM switch, for example, a custom build similar to the Level1Techs KVM, to route two USB 2.0 data lines between two computers.

Industrial Test Jigs: Integrated into custom test equipment to manually switch multiple data or sensor lines, for instance, in a validation jig for an automotive control module from a manufacturer like Bosch.
