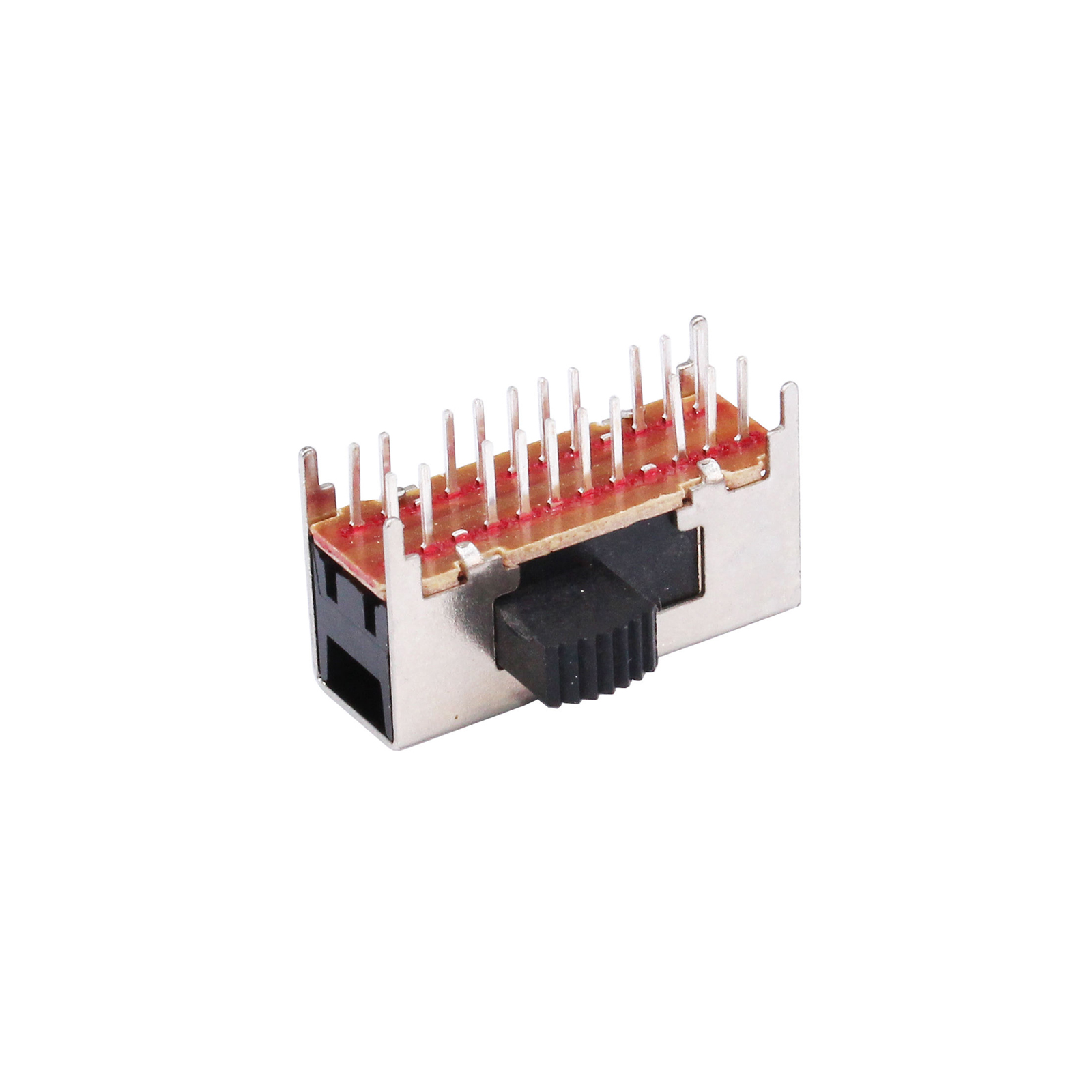

4-Pole 2-Position Right Angle Slide Switch Right Angle Slide Switch

Product Overview

The dip switch right angle is a precision right angle slide switch designed for reliable multi-circuit control, compact installation, and durable operation. Featuring a 4PDT configuration, this switch allows a single right angle switch actuator to manage four independent circuits, providing a powerful alternative to multiple individual switches.

This versatile switch is ideal for:

• right angle tactile switch – for precise manual control

• push button right angle / push button switch right angle – for momentary or latching actions

• right angle button – for compact panel integration

• right angle toggle switch – for dual-mode selection

• dip switch right angle – for PCB-based circuit configuration

Whether used in professional audio, industrial electronics, embedded systems, or test setups, the dip switch right angle ensures reliable signal routing and simplified multi-circuit control.

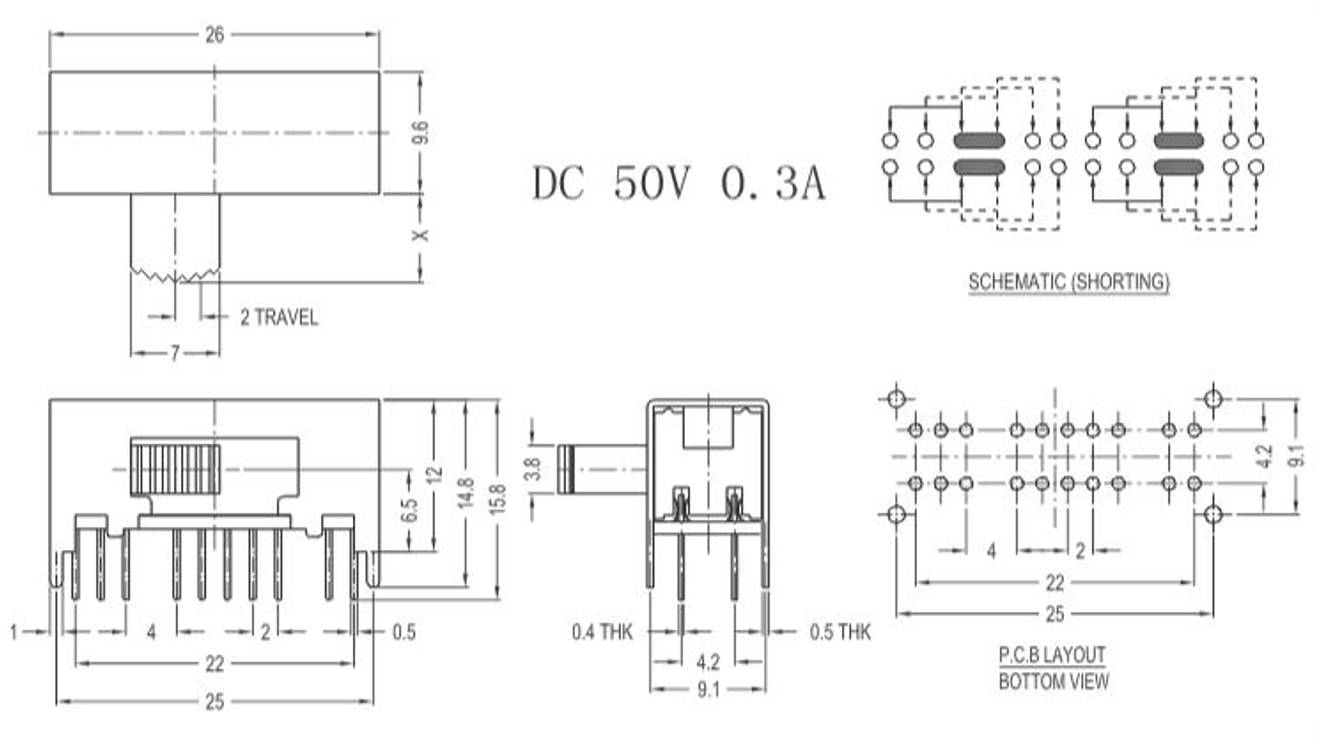

Technical Specifications

Product Features

 Right-Angle Design for Compact Layouts

The dip switch right angle features a side-mounted actuator, allowing horizontal operation parallel to the PCB. This right angle slide switch design is ideal for push button right angle and right angle tactile switch applications where space is limited or edge-of-board access is required.

Multi-Circuit Capability

• 4PDT configuration allows a single actuator to control four separate circuits

• Enables simultaneous switching of multiple signals

• Consolidates the function of four individual SPDT switches

This makes the dip switch right angle perfect for right angle toggle switch and right angle button applications where multiple channels need to be controlled in unison.

 Reliable Electrical Performance

• Rated 0.3A 50V DC

• Dielectric strength: 500V AC for 1 minute

• Contact resistance ≤30mΩ

• Insulation resistance ≥100MΩ

These specifications ensure signal integrity and reduce the risk of noise or connection failure in critical applications.

 Smooth and Precise Operation

• Operation force: 400gf ±100gf

• Travel distance: 2.0mm

The right angle tactile switch mechanism provides clear feedback, allowing the user to confirm each switch position with confidence. The side-mounted slider provides intuitive control and reduces accidental operation.

 Durable and Long-Lasting

• Minimum 10,000 operation cycles

• Robust through-hole design ensures strong mechanical connection

• Suitable for high-density PCB layouts and repeated use

The dip switch right angle is engineered for professional and industrial applications where reliability and long lifespan are essential.

Advantages

✔ Compact Multi-Circuit Control

Replacing multiple switches, this right angle slide switch consolidates four circuits into one actuator:

• Simplifies PCB layout

• Reduces panel clutter

• Saves assembly time

✔ High Mechanical & Electrical Stability

• Through-hole pins anchor securely to the PCB

• Side-mounted actuator provides durable horizontal operation

• Maintains consistent contact pressure to prevent signal drop

Ideal for push button switch right angle or right angle toggle switch applications in professional equipment and industrial systems.

✔ Flexible Application

The dip switch right angle is widely used for:

• Professional Audio & Video: Switching multiple signal lines or channels

• Industrial Electronics: Controlling low-power subsystems and multi-mode circuits

• Embedded Systems: Compact PCB-based circuit selection

• Test & Measurement: Routing signals to different test points efficiently

Its flexibility makes it perfect for any system requiring reliable multi-circuit selection in a small footprint.

Operating Principle

1. Right-Angle Stability: Side-mounted actuator operates parallel to the board while through-hole pins provide strong electrical and mechanical support.

2. Quad-Pole Switching: Four independent poles switch together, allowing coordinated control across multiple circuits.

3. Horizontal Actuation: The user slides the actuator to select between two latching positions, ensuring a stable, tactile interface.

The internal spring mechanism maintains reliable contact and prevents accidental signal loss or interference.

Summary

The dip switch right angle combines compact design, reliable multi-circuit control, and durable operation. It is ideal for applications requiring:

• right angle slide switch

• right angle tactile switch

• push button right angle / push button switch right angle

• right angle button

• right angle toggle switch

Key Benefits:

• Controls four independent circuits with one actuator

• Reduces PCB complexity and assembly requirements

• Provides stable, tactile, and precise operation

• Durable design suitable for professional and industrial use

For datasheets, sample requests, or technical support for your dip switch right angle, contact us today.

Professional Audio Equipment: Used as an input selector on a high-end headphone amplifier like the Schiit Mjolnir, to switch between two balanced stereo XLR inputs.

KVM Switches: Serves as the core switching mechanism in a 2-port KVM switch, for example, a custom build similar to the Level1Techs KVM, to route four USB 2.0 lines (VCC, D-, D+, GND for one port) between two computers.

Industrial Test Jigs: Integrated into custom test equipment to manually switch multiple data or sensor lines, for instance, in a validation jig for an automotive control module from a manufacturer like Bosch.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
