Product Brief Description
The KKG SK62H03 is a high-density, Six Pole, Three Throw (6P3T) panel mount slide switch. This robust component is designed with a right-angle and through-hole configuration, providing simultaneous control over six independent circuits across three distinct positions, making it a powerful slide switch on off on for complex systems.
ODM/OEM Service
Source Factory
Stable Daily Output
High Quality
Multiple Payment Methods
Pre/After Service
The right angle Slide Switch is a compact and high-performance switching component designed for precise signal routing, mode selection, and reliable control in space-limited electronic devices. With a 6P3T configuration, this switch allows one actuator to control six independent circuits across three distinct positions, making it an excellent solution for complex circuit designs that require stable and efficient switching performance.
Compared with a standard 3 position switch, this product offers higher circuit integration and more flexible control. It is especially suitable for applications where engineers need a durable three position switch with compact right-angle mounting. Its side-actuated structure makes it easy to operate while saving valuable PCB space, which is highly beneficial in compact consumer electronics, industrial systems, and embedded control devices.
This product can also serve in scenarios similar to a 3 position toggle switch, 3 position selector switch, or even specialized control assemblies often associated with a 3 position rotary switch or 3 position key switch, depending on the system design requirements. For customers seeking a reliable three position toggle switch solution in a right-angle format, this switch offers an ideal balance of mechanical stability, electrical reliability, and long service life.

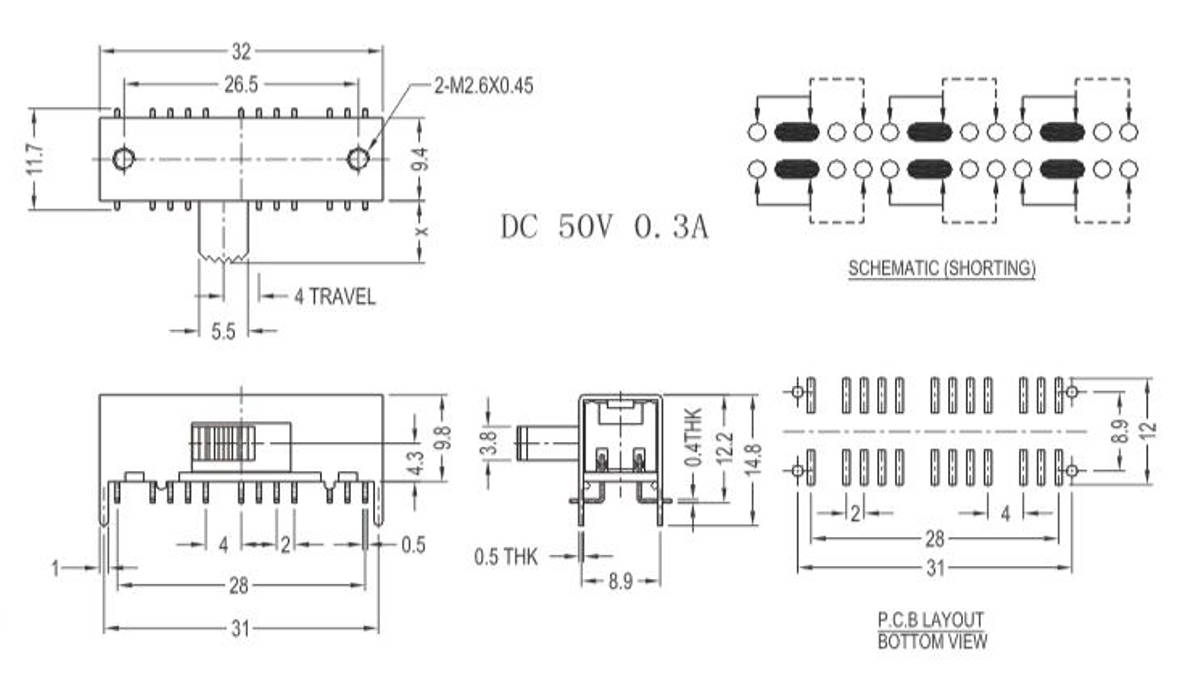

| Rating | 0.3A 50V DC |
|---|---|
| Travel | 4.0mm |
This right angle slide switch adopts a side-actuated design, allowing horizontal operation in narrow installation environments. The right-angle mounting format is especially suitable for compact PCB layouts and panel-mounted devices where vertical space is limited. It provides an efficient alternative for applications that may otherwise use a 3 position toggle switch or three position toggle switch.
The switch features six poles and three positions, enabling simultaneous control of six independent circuits. This advanced configuration makes it much more capable than a conventional 3 position switch, especially in multi-signal routing, mode selection, and complex electronic control systems.
Designed for dependable signal transmission, the switch delivers stable electrical contact with:
Rated current of 0.3A 50V DC
Dielectric strength of 500V AC for 1 minute
Contact resistance up to 30mΩ
Insulation resistance of at least 100MΩ
These features ensure reliable performance in low-power signal switching applications, making it suitable for systems that demand precision similar to a 3 position selector switch.
With an operating force of 400gf ±100gf and a travel distance of 4.0mm, the switch offers clear tactile feedback and precise position control. Each switching action feels stable and defined, improving user confidence during operation.
With a minimum life span of 10,000 cycles, this right angle slide switch is built for repeated operation in demanding environments. Its durable internal structure and stable contact design help reduce the risk of signal interruption, contact failure, or switching errors over time.
The combination of through-hole pins and screw-hole mounting provides stronger mechanical fixation. This design improves stability on the PCB and helps the switch remain secure even in vibration-prone or frequently operated equipment.
The right-angle structure reduces required installation height and saves PCB space. For compact systems, this is a major benefit over bulkier alternatives such as some 3 position rotary switch or larger 3 position key switch assemblies.
One actuator can manage six independent poles across three positions, effectively consolidating multiple switching functions into one component. This reduces circuit complexity and minimizes the need for multiple individual switches.
The internal spring and contact structure are engineered to ensure consistent conductivity and stable switching across all positions. This helps prevent signal loss, noise, and unintended contact changes.
Because of its compact footprint, dependable performance, and multi-position capability, this three position switch can be integrated into a wide range of control systems, signal routing boards, and embedded applications.
Instead of using several smaller switches for multiple circuit paths, this right angle slide switch allows manufacturers to simplify product design, reduce component count, and improve assembly efficiency.
The right angle slide switch works by moving six independent poles simultaneously across three different terminal positions. When the side actuator is shifted, the internal contact structure transitions smoothly from one latching position to the next, allowing precise and synchronized circuit switching.
Its internal spring mechanism maintains stable contact pressure in each position, ensuring that the switch performs reliably without signal drop, unwanted noise, or accidental disconnection. This makes it an efficient solution for applications requiring the functionality of a 3 position selector switch, 3 position toggle switch, or three position toggle switch in a compact and robust form.
The switch is ideal for audio mixers, audio interfaces, signal processors, and video hubs where multiple channels need to be routed or switched between different operating modes.
In industrial control panels, embedded systems, and machine control devices, this right angle slide switch can be used for multi-mode selection, signal path switching, and system configuration.
Compact electronic products that require a dependable 3 position switch for selecting modes, functions, or signal paths can benefit greatly from this product’s small size and smooth operation.
This switch is highly suitable for routing multiple signals to specific test points in laboratory instruments, testing fixtures, and diagnostic equipment.
For designers seeking an alternative to a 3 position rotary switch or 3 position key switch, this switch provides a more compact and direct manual control solution while maintaining reliable three-position functionality.
Compact and efficient right angle slide switch design
6P3T structure for complex circuit control
Reliable three position switch performance
Smooth tactile feedback and precise operation
Strong electrical insulation and low contact resistance
Long service life of at least 10,000 cycles
Suitable replacement or alternative for 3 position toggle switch, 3 position selector switch, 3 position rotary switch, and 3 position key switch applications
Our right angle slide switch is a reliable and versatile solution for engineers and manufacturers who need a durable, compact, and high-density switching component. With its six-pole, three-position design, robust mounting structure, and long-lasting electrical performance, it is ideal for professional audio systems, industrial equipment, consumer electronics, and testing applications.
Whether you are looking for a compact 3 position switch, a dependable three position switch, or an alternative to a 3 position toggle switch, 3 position selector switch, 3 position rotary switch, or 3 position key switch, this product delivers excellent functionality in a space-saving right-angle format.
Professional Audio Consoles: Used as the main bus assignment switch on a large-format mixing console like the Solid State Logic SSL Live L550 to route multiple channels to different mix busses.
