6-Pole 3-Position Right Angle Electrical Slide Switch

Product Overview

The 6-Pole 3-Position Right Angle Electrical Slide Switch is a high-performance right angle switch designed for compact PCB layouts and side-access control. Its 90-degree terminal design makes it ideal for surface mount right angle switch applications, allowing easy side operation without increasing device footprint.

This versatile switch series includes:

• right angle dip switch – ideal for multi-position circuit selection

• right angle toggle switch – perfect for manual mode switching

• surface mount right angle switch – suitable for automated assembly

Whether you need precise signal routing, mode selection, or multi-state control, this switch offers stable, reliable, and long-lasting performance for industrial, professional, and consumer electronics applications.

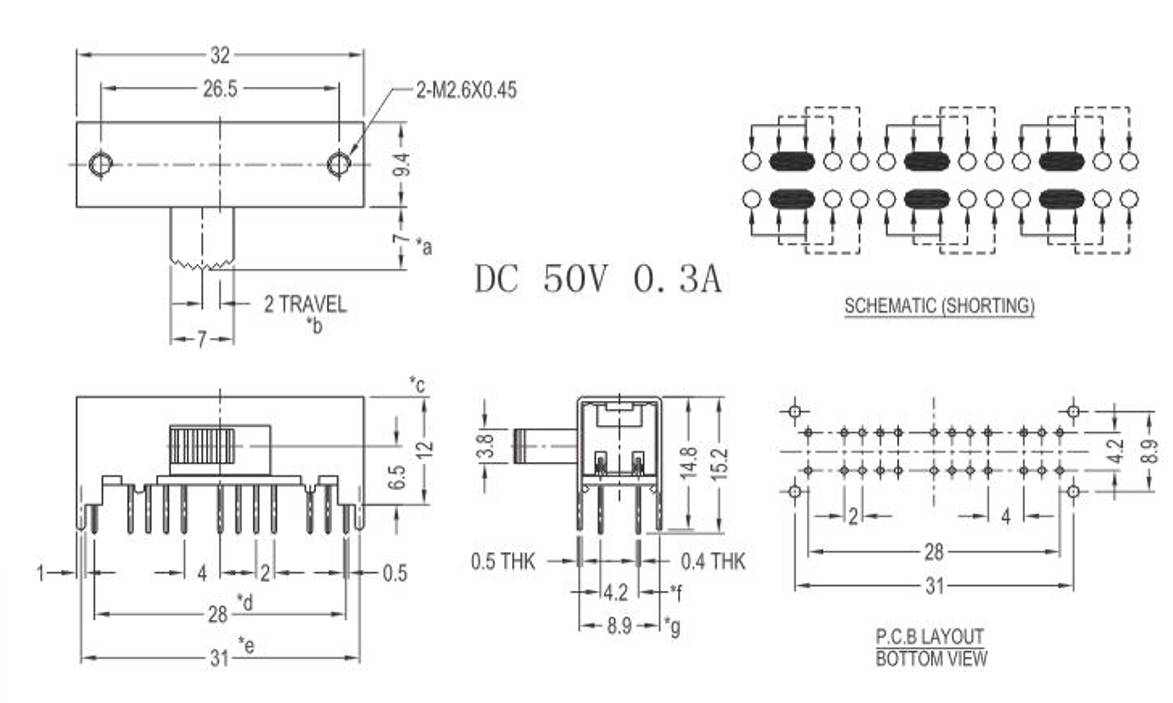

Technical Specifications

Product Features

 Compact Right Angle Design

The right angle switch structure enables side access, making it ideal for right angle dip switch or right angle toggle switch applications. Its 90° terminal orientation allows mounting in limited spaces and flush panel designs. The surface mount right angle switch variant supports automated PCB assembly while maintaining high-density layouts.

Reliable Electrical Performance

This 6-Pole 3-Position Right Angle Electrical Slide Switch is engineered for stable electrical operation:

• Rated 0.3A 50V DC

• Insulation resistance ≥100MΩ

• Contact resistance ≤30mΩ

• 500V AC dielectric strength for 1 minute

Such specifications ensure signal integrity and reduce electrical losses in multi-circuit configurations.

Smooth and Precise Operation

• Operation force: 400gf ±100gf

• Travel: 2.0mm

The tactile feedback of this right angle toggle switch is optimized for smooth switching without accidental actuation, providing reliable manual control for multi-position settings.

Durable and Long-Lasting

With a minimum lifespan of 10,000 cycles, the right angle dip switch is built with high-quality materials and robust internal contacts, ensuring consistent performance for industrial and field applications.

 Wide Operating Temperature Range

Operating between -25℃ to +85℃, the switch performs reliably in industrial, outdoor, and consumer environments where temperature fluctuations may occur.

Advantages

 Multi-Circuit High-Density Switching

The 6P3T configuration allows:

• Six independent circuits controlled by a single actuator

• Three-position switching for each pole

• Simultaneous and synchronized transitions

This design reduces PCB complexity and allows compact layouts, making it ideal for precision slide switch applications.

 Mechanically Stable

• Through-hole pins ensure secure electrical connections

• Optional screw mounts reinforce mechanical stability

• Resistant to vibration and mechanical stress

Perfect for industrial equipment, control panels, and embedded electronics.

 Space and Interface Optimization

Using a surface mount right angle switch enables:

• Slim device profiles

• Side-panel accessible controls

• Compact integration of multiple switches into one unit

This is especially advantageous in consumer electronics, robotics, and automation modules.

Simplified User Operation

Replacing multiple switches with a single right angle toggle switch reduces:

• Panel clutter

• Complex PCB routing

• Overall assembly cost

The single 6-Pole 3-Position Right Angle Electrical Slide Switch provides an intuitive interface for multi-mode or multi-state operations.

Operating Principle

Synchronized Multi-Pole Switching

The right angle dip switch design links six internal switching mechanisms to one actuator. When the actuator moves:

• All six poles switch simultaneously

• Each pole transitions across three positions

• Circuit connections change in precise unison

Side-Actuated Slide Mechanism

The right-angle slide mechanism allows side access while maintaining robust electrical contact with the PCB or chassis, supporting both through-hole and surface mount right angle switch implementations.

Applications

The 6-Pole 3-Position Right Angle Electrical Slide Switch is widely used in:

Industrial Control

• PLC panels

• Automation devices

• Multi-mode industrial equipment

Consumer Electronics

• Audio and video signal routing

• Game controller configuration

• Smart home modules

Medical Devices

• Functional mode selection

• Multi-position control modules

Communication Equipment

• Networking device configuration

• Signal routing and selection

Automotive Electronics

• Instrumentation panels

• Auxiliary function switching

Summary

The 6-Pole 3-Position Right Angle Electrical Slide Switch is a compact, reliable, and versatile solution for right angle switch, right angle dip switch, and right angle toggle switch applications. Its 6P3T configuration simplifies multi-circuit control, while surface mount right angle switch variants support modern automated assembly.

Whether for industrial automation, electronics, medical, or automotive applications, this switch offers precise performance, long lifespan, and compact integration.

Features at a glance:

• Multi-circuit signal management

• Three-position switching per pole

• Side-access operation

• High mechanical and electrical stability

• Compact footprint for dense layouts

Contact us today to request datasheets, technical support, or sample units for testing and integration.

Automotive Diagnostics: Used in high-end vehicle diagnostic tools, like a breakout box for the Bosch KTS 590, to manually switch multiple CAN bus and sensor lines between the vehicle, a simulator, and a measurement unit.

Custom Audio Visual Systems: Serves as a manual routing switch in a multi-room audio distribution system from a brand like Crestron, to send three stereo sources to a specific zone amplifier.

Robotics Control: Integrated into the manual control pendant for an industrial robot, such as the KUKA KR AGILUS, to switch the end-of-arm tooling between different operational modes (e.g., Grip, Release, Re-center).
