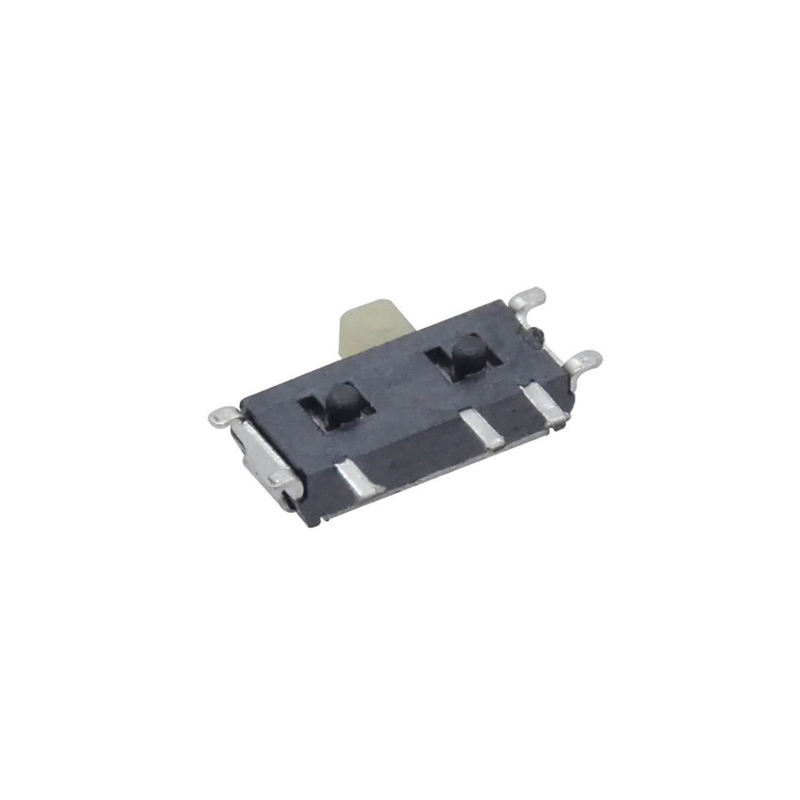

KKG MK-12C02: Horizontal Surface Mount Slide Switch

Anbernic RG35XX Slide Switch's Product Introduction

The KKG MK-12C02 is a precision-engineered switching solution, perfect for modern portable and handheld electronics. This high-quality mini slide switch is designed for automated SMT manufacturing, ensuring a reliable and efficient assembly process. Its SPDT (Single Pole, Double Throw) circuit allows it to perform more complex tasks than a simple power switch, making it ideal for selecting between two different modes or signal paths. The horizontal, side-actuated design of this pcb slide switch makes it easily accessible from the edge of a device. Built to last with a 10,000-cycle lifespan, the MK-12C02 is a durable and space-saving choice for any compact electronic product.

TP-Link HA100 Slide Switch's Product Operating Principle

Surface Mount Integration: The switch is designed with SMT terminals and mounting posts to be soldered directly onto the surface pads of a PCB, ensuring a secure connection.
Side-Actuation Mechanism: The actuator is positioned on the side, allowing it to be operated horizontally, parallel to the PCB surface, which is ideal for edge-mounted controls.
Circuit Path Selection: In one position, the internal common contact is connected to the first throw terminal. Sliding the actuator moves the contact to connect with the second throw terminal, redirecting the circuit.

Aqara Cube Controller Slide Switch's Product Functions

Mode Selection: Allows a user to switch a device between two operational states, such as selecting between "Bluetooth" and "USB" mode on a peripheral.
Power Control: Functions as an effective and compact main power switch for low-current, battery-operated devices like wearables and remote sensors.
Signal Routing: Enables a single audio or data signal to be directed to one of two different destinations, for example, between an internal memory and an SD card.
Hold Switch Function: Can be used as a "hold" switch on a portable media player to disable other buttons and prevent accidental presses.

Handheld Gaming: Used as the power switch or a mode selector on handheld gaming devices, such as the Anbernic RG35XX, for its compact and reliable design.

Wireless Audio: Serves as the ON/OFF power switch on compact Bluetooth audio receivers like the TP-Link HA100, where space is at a premium.

Smart Home Devices: Integrated into small IoT sensors and smart home devices, for instance, a mode switch on the Aqara Cube Controller to select its function.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.

Q1: Why should we choose KKG Electronics as our component supplier?

A: Partnering with KKG offers several key advantages:

Manufacturing Excellence: With 15+ years of experience, we have the technical expertise to deliver reliable and consistent electronic components.

Competitive Value: We provide premium-quality products at competitive factory-direct prices, ensuring you get the best value without compromising on performance.

Custom OEM/ODM Solutions: Our team excels at providing comprehensive OEM & ODM services, tailoring components to meet your exact product specifications.

Dedicated Customer Support: Our commitment extends beyond the sale with responsive, professional support to ensure your complete satisfaction.

Q2: What is your typical turnaround time for a quotation?

A: Once we receive all the necessary product details and technical files, you can expect to receive a comprehensive quotation from our team within 24 hours.

Q3: What is your standard lead time for production orders?

A: Our standard production lead time is typically 2-3 weeks for most orders. Lead time can vary based on the specific component, order volume, and any customization requirements. We will always confirm the delivery schedule before you place an order.

Q4: Can you create custom molds or modify existing component designs?

A: Absolutely. We specialize in custom engineering solutions. Our experienced team can develop new molds for unique components or modify existing designs to meet specific requirements like uncommon terminals or unique form factors. Contact us to discuss your project forecast, end-product, and design goals in detail.

Q5: What payment methods do you accept?

A: We offer flexible payment options to suit your needs. For bulk production orders, we accept T/T (Telegraphic Transfer). For sample orders or smaller quantities, payment can be conveniently remitted via PayPal.
