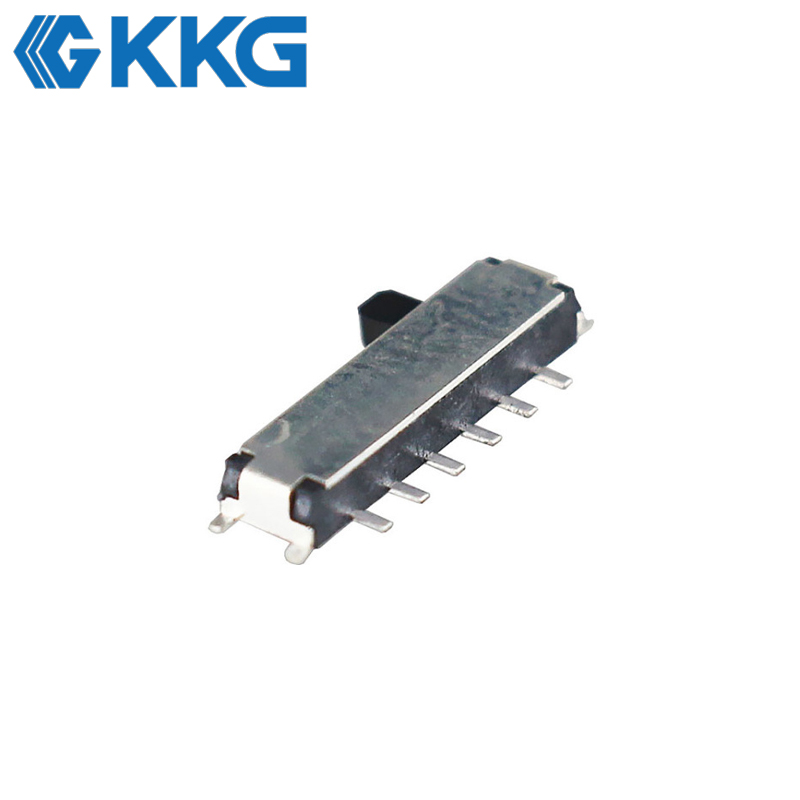

Miniature 4-Position Right Angle Slide Switch

Thrustmaster Warthog HOTAS Slide Switch's Product Introduction

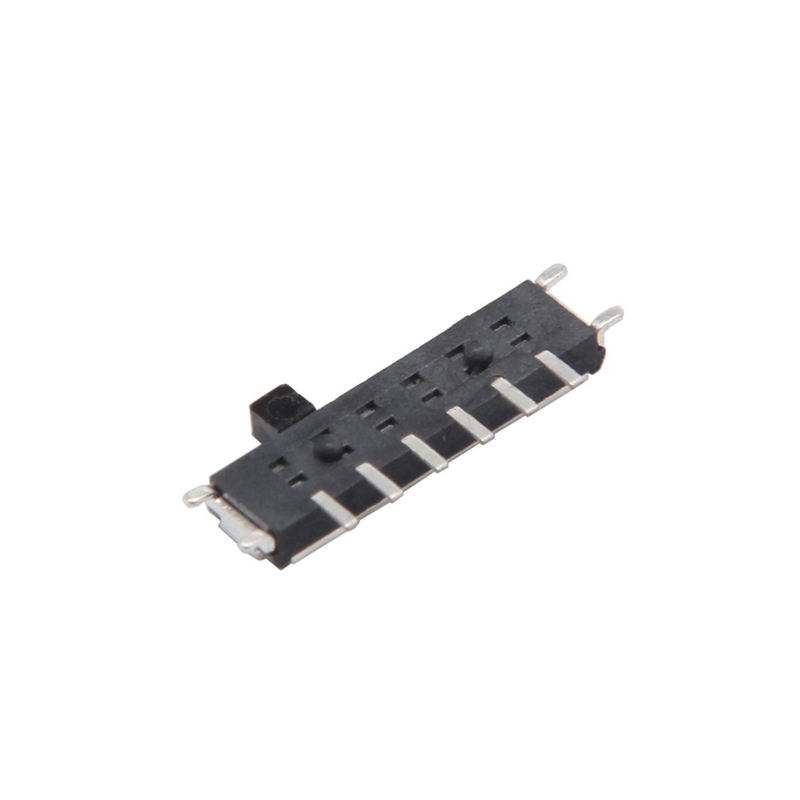

The KKG MK-14C03 is an advanced switching solution engineered for modern devices that require complex signal routing in a minimal amount of space. This high-quality electrical slide switch offers four distinct circuit paths from a single input, providing extensive functionality from a single component. Its low-profile, right-angle design is ideal for handheld and portable electronics, allowing the user to easily slide the switch from the edge of the device. Designed for automated SMT assembly, this slide switch ensures a reliable and efficient manufacturing process for even the most compact circuit boards.

Keysight U1733C Slide Switch's Product Operating Principle

Surface Mount Integration: The switch is designed with SMT terminals and mounting pads to be soldered directly onto the surface of a PCB, ensuring excellent mechanical stability.
Side-Actuated Control: The actuator is operated parallel to the board surface, making it ideal for controls that are accessible through a slot in the side of an enclosure.
Four-Path Signal Selection: The internal contact connects a single common terminal to one of four different throw terminals depending on the actuator's position, enabling four distinct circuit paths.

Schiit Jotunheim Slide Switch's Product Functions

Multi-Mode Selection: Allows a user to easily toggle a device between four distinct operational modes, such as different performance settings or user profiles.
4-Way Signal Routing: Enables a single input signal to be directed to one of four different outputs, perfect for selecting audio sources or data paths.
Component Consolidation: Replaces the need for a larger rotary switch or multiple individual switches, saving valuable board space and simplifying product design.
Manual Configuration Interface: Provides a reliable physical method for setting a 4-state configuration in consumer electronics, test equipment, or musical instruments.

Audio Equipment: Used as an input selector on high-end headphone amplifiers like the Schiit Jotunheim, allowing the user to switch between four different audio sources.

Test and Measurement Gear: Serves as a range or function selector on handheld test equipment, for example, setting the measurement type on a portable LCR meter like the Keysight U1733C.

Flight Simulation Peripherals: Integrated into high-end flight simulator controls like the Thrustmaster Warthog HOTAS throttle base, used for selecting different system modes.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
