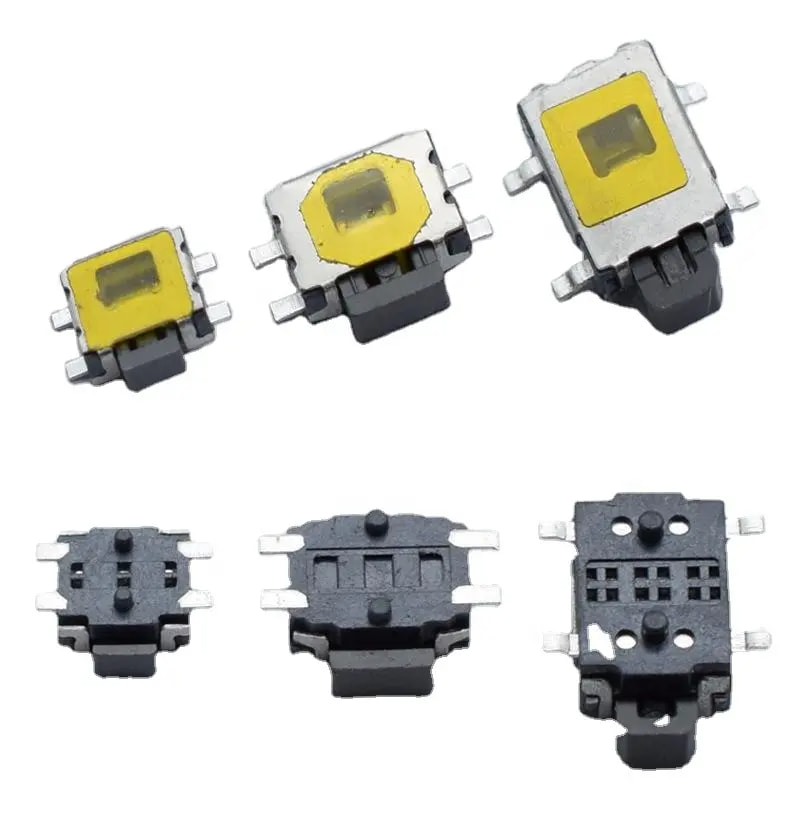

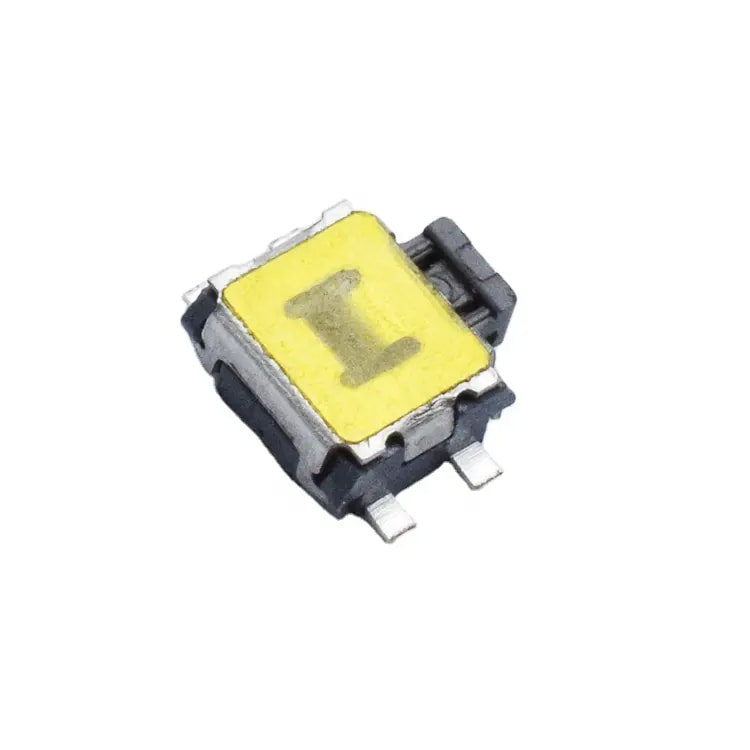

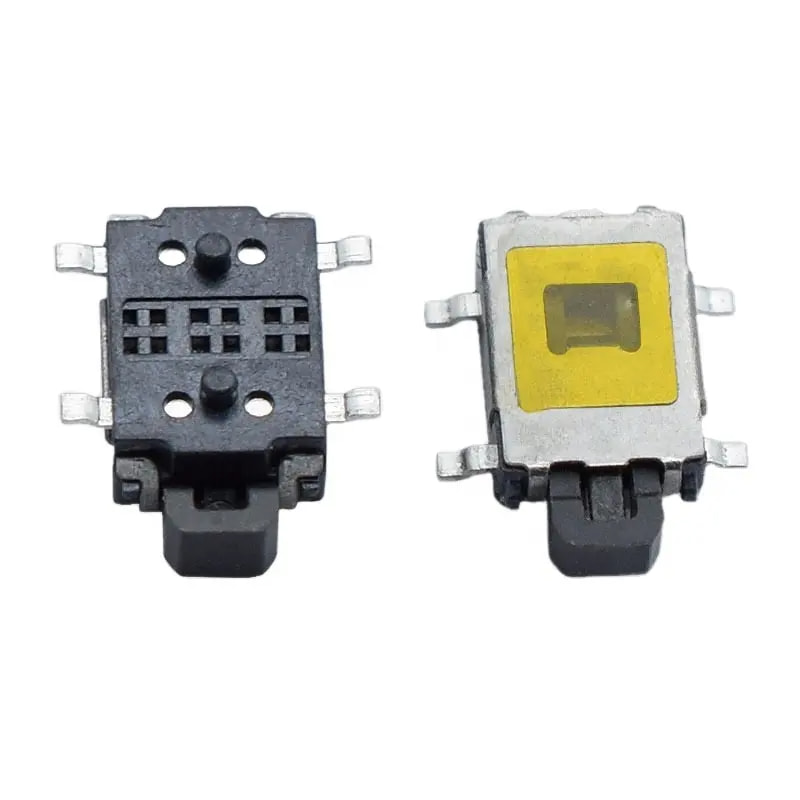

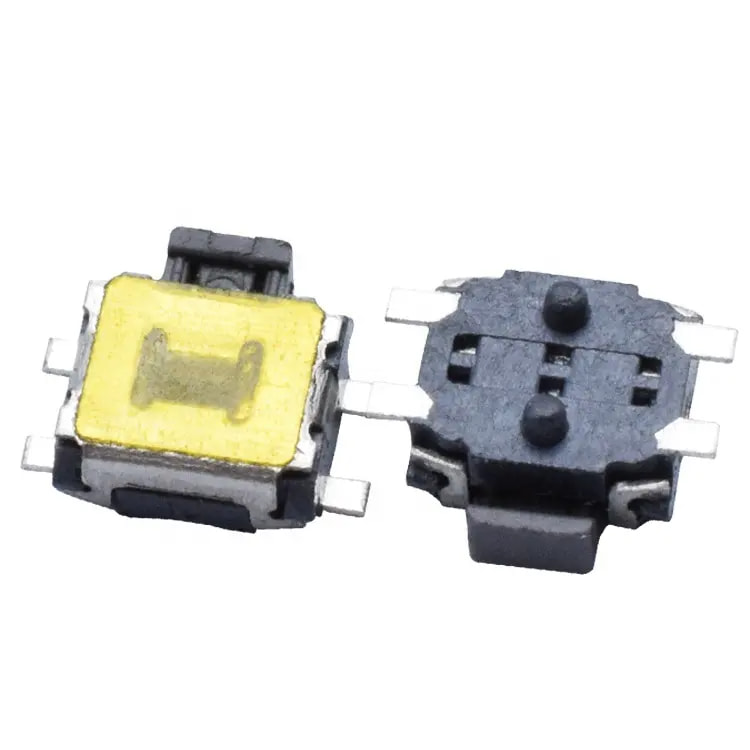

Right Angle Ultra Miniature Tact Switch

Product Description

The Right Angle Ultra Miniature Tact Switch is a compact, high-performance electronic switch designed for applications requiring precise actuation and limited space. Featuring a right-angle design, this switch provides excellent PCB mounting flexibility, making it ideal for compact electronic devices. It ensures reliable tactile feedback while maintaining a low profile, making it suitable for consumer electronics, communication devices, and other precision applications.

Advantages

• Ultra-Compact Design: Small footprint allows integration in space-constrained devices.

• Reliable Performance: Provides consistent tactile feedback and long operational life.

• Versatile Mounting: Right-angle configuration simplifies PCB layout and assembly.

• Durable Construction: Resistant to wear, ensuring high longevity even under repeated use.

• Wide Application Range: Compatible with various electronic devices, including portable electronics, IoT devices, and control panels.

Applications of Right Angle Ultra Miniature Tact Switch:

Audio Equipment: Ideal for use in compact audio devices such as portable speakers, headphones, and audio mixers, where space is limited but precise control is necessary.

Office Automation (OA) Equipment: Suitable for devices like keyboards, printers, and multifunctional office machines, providing reliable tactile feedback in small, often cramped spaces.

Instrumentation: Used in measuring and testing instruments like multimeters, oscilloscopes, and other compact measurement tools, ensuring accurate operation in a small form factor.

Communication Devices: Perfect for compact communication equipment such as handheld radios, smartphones, and other portable devices where space-saving and tactile response are crucial.

Consumer Electronics: Employed in various consumer gadgets, including remote controls, wearable devices, and compact electronic toys, offering reliable switching in a miniature size.

FAQ

Q1: What is the maximum current rating of this switch?
A1: The standard Right Angle Ultra Miniature Tact Switch can handle up to 50mA at 12V DC. Higher current models are available upon request.

Q2: Can this switch be customized for different actuation forces?
A2: Yes, actuation force can be customized within the range of 100gf to 250gf depending on the application requirement.

Q3: What is the lifespan of this tactile switch?
A3: Standard models offer up to 1,000,000 mechanical cycles, ensuring long-term reliability.

Q4: Is the switch suitable for automated PCB assembly?
A4: Yes, the right-angle PCB mount design makes it compatible with automated pick-and-place and soldering processes.

Q5: Can the operating temperature range be adjusted for harsh environments?
A5: The standard operating range is -20°C to +70°C. For extreme environments, custom materials and specifications can be provided.

Q6: Are samples available for testing?
A6: Yes, sample orders are available to verify fit, feel, and performance before bulk purchasing.
