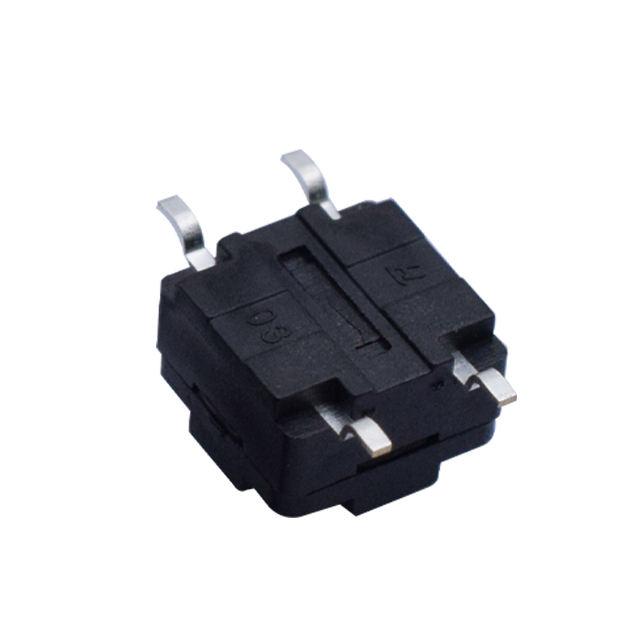

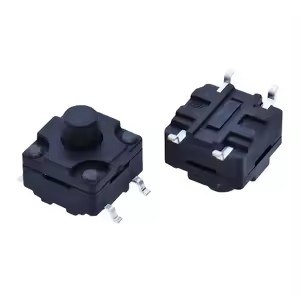

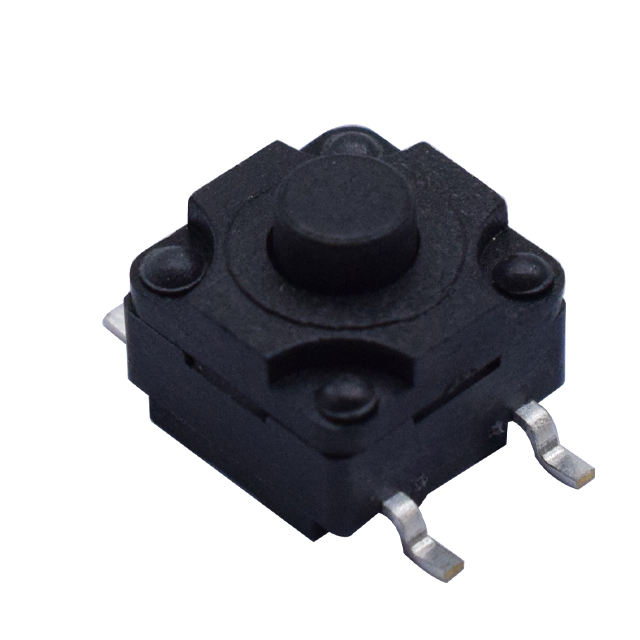

8*8 SMD Waterproof Tact Switches

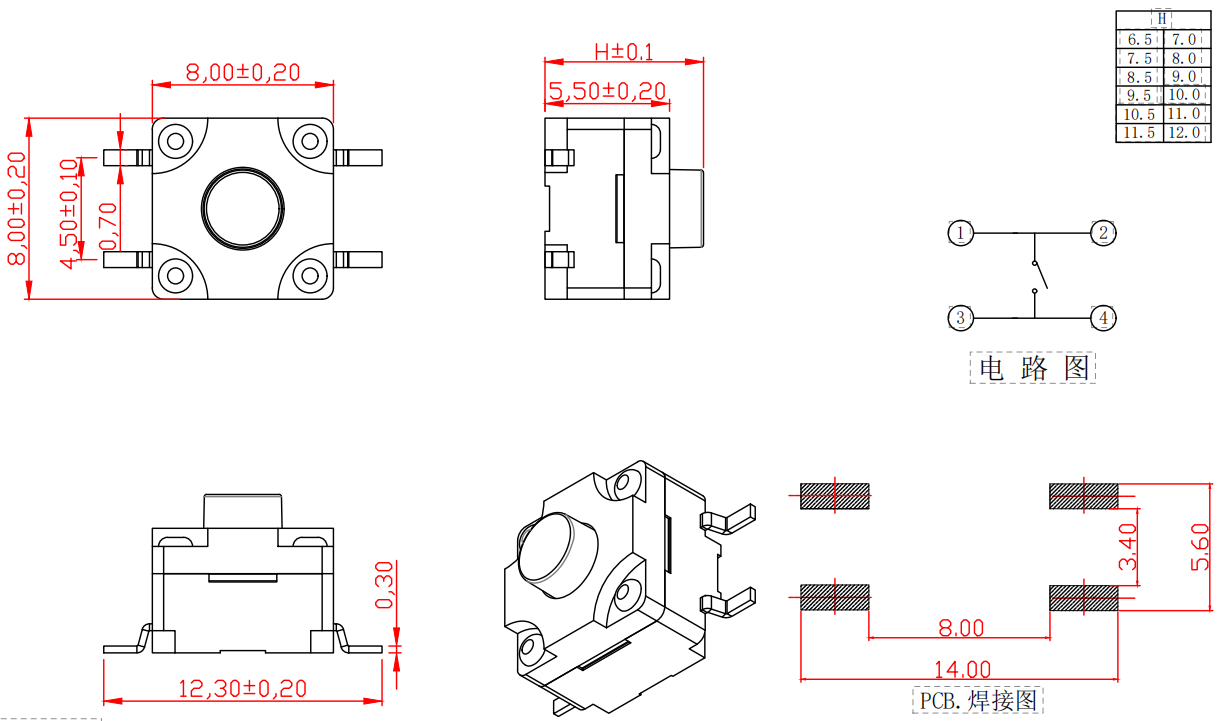

IP67 12*12 Tactile Switch's Product Structure and Operating Principle

12×12 waterproof tactile switches typically consist of the following components: Base and cover plate: Made of PA66 material, forming a sealed cavity through laser welding or ultrasonic welding to prevent moisture ingress. Metal Spring Contact: Serving as the core conductive component, made of phosphor bronze or stainless steel for high elasticity and fatigue resistance. Contact Point: Conductive contacts (e.g., silver-plated contacts) positioned beneath the spring contact connect to solder pads on the PCB to complete the circuit. Sealing Components: Such as silicone gaskets, waterproof O-rings, or secondary-molded insulating seals covering critical areas to block moisture ingress.

Work Process

Pressing Operation: When the user presses the switch surface, external force is transmitted through the cover plate to the metal spring leaf. The leaf deforms and depresses, causing the contact to engage with the PCB pad, thereby completing the circuit.

Releasing Operation: After releasing the finger, the spring leaf returns to its original shape due to its inherent elasticity, causing the contact to disengage from the pad and break the circuit.

Waterproofing Process

Sealed Chamber: The base and mounting slot form an enclosed space, sealed against external water ingress by a snap-fit waterproof membrane.

Drainage Design: Select models feature drainage holes to prevent performance degradation from water accumulation.

Humidity Monitoring: An integrated micro-humidity sensor continuously monitors humidity levels within the mounting slot, triggering an alarm mechanism when thresholds are exceeded.

12*12  Waterproof Touch Switch's Product Feature

1. Good feeling and long life; 2. Multiple operating force settings available; 3. Snap-in type, can be mounted directly on P. C. Board and good for electrostatic discharge; 4. It has a lot of choices for button shape and height and it is easily to install and kind of product; 5. The tactile switches/tact switch come with multiple cap and color options, excellent tactile feedback and high reliability dome technology.

Consumer Electronics and Portable DevicesSmartphones, Smartwatches: The compact 8×8 tactile switch enables waterproof functionality without occupying excessive space. Bluetooth Headphones, Portable Speakers: The 8×8 surface-mount waterproof structure meets compact layout requirements while providing water and dust protection.Medical Devices and Precision InstrumentsBlood Pressure Monitors, Thermometers: 8×8 tactile switches on device control panels prevent liquid ingress that could damage circuits. Endoscopes, Portable Ultrasound Devices: In medical settings, 8×8 waterproof switches meet sterile operation requirements, with sealed structures preventing disinfectant penetration.Smart Home & Small AppliancesSmart Door Locks, Electronic Peepholes: 8×8 waterproof switches integrated into door lock panels, with water resistance (e.g., IP65 rating) preventing malfunctions from rain or fingerprint contamination. Electric Toothbrushes, Shavers: 8×8 waterproof switches ensure reliable operation even after prolonged exposure to moisture.

12*12 SMD Tactile Switches' Packaging Details:

The minimum packaging quantity for this product varies depending on the product height.

Q:Do you have MOQ on quantity?

A:No, we accept small quantity, we want to open more cooperation for double win.

Q. How can we get samples from you?

A: We support samples for customers who have record in our store. If you have no business record before, probably you need to charge boot samples and express cost.

Q. Do youtest or check all your goods before delivery?

A: Yes,we have 100% test and check all goods before delivery.

Q. How can we get the goods to you?

A: We can provide our transportation mode resources and price for your reference, and the final transportation mode is up to you under our current conditions.
