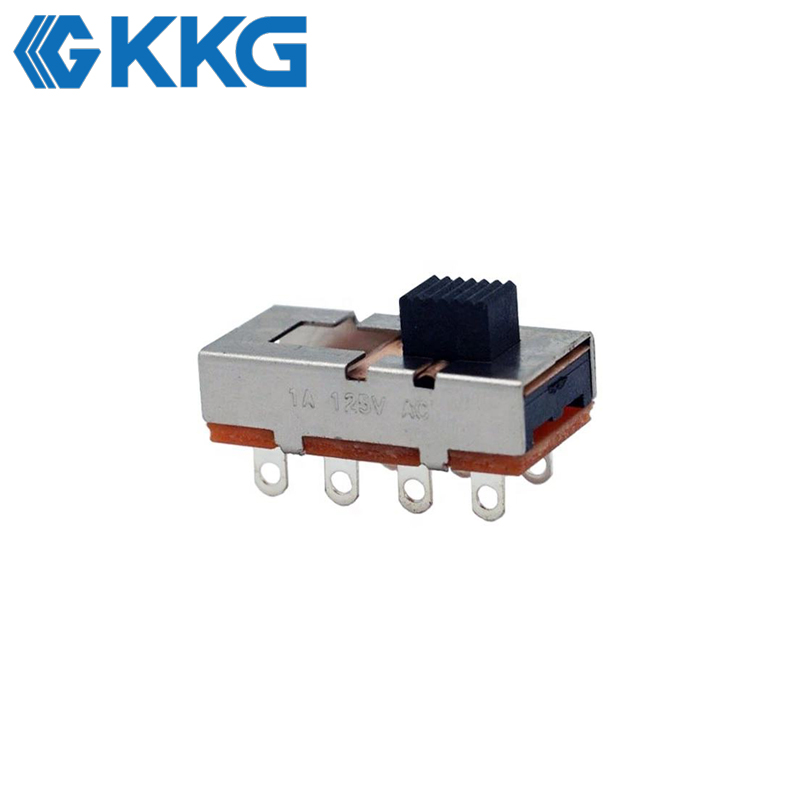

Heavy-Duty 3-Position Dp3t Slide Switch

Product Description

The DP3T slide switch is a versatile and durable switching component designed for complex circuit control in demanding environments. Unlike a standard dp3t rocker switch, this switch features a sliding actuator that provides precise positioning and clear tactile feedback, making it ideal for applications requiring reliable multi-state control.

Built with a Double Pole, Triple Throw configuration, this dp3t switch allows a single actuator to manage two independent circuits across three distinct positions. Its robust structure and high-quality materials ensure stable electrical performance and long-lasting operation.

As a true heavy duty switch, it is engineered to handle frequent use and maintain consistent performance under various environmental conditions. The solder lug terminals provide secure connections for both PCB mounting and direct wiring, offering excellent flexibility for integration into different systems.

Product Specifications

Key Features

• DP3T Configuration: Advanced dp3t slide switch for multi-position circuit control

• Heavy Duty Design: Built as a reliable heavy duty switch for long-term use

• Smooth Sliding Action: Provides accurate positioning with clear tactile feedback

• Secure Solder Lug Terminals: Ensures strong electrical connections

• Three-Position Latching: Stable switching between defined positions

• Wide Temperature Range: Operates efficiently from -25℃ to +85℃

Product Advantages

This dp3t switch offers superior flexibility compared to a traditional dp3t rocker switch, enabling more precise control and better space utilization. Its sliding mechanism allows users to easily select between three distinct operational states, reducing the need for multiple switches.

As a heavy duty switch, it is designed to withstand repeated use while maintaining stable electrical performance. The robust construction ensures durability in industrial and commercial environments, while the compact design helps optimize panel or PCB layouts.

Additionally, the dual-pole design allows simultaneous control of two circuits, making it ideal for complex applications such as signal routing, motor control, and multi-mode selection systems.

Applications

The dp3t slide switch is widely used in various industries and devices, including:

• Audio equipment and signal routing systems

• Industrial control panels and machinery

• Automotive and electronic control systems

• Household appliances and smart devices

• Motor control systems (Forward / Off / Reverse)

• Test equipment and instrumentation

FAQ

Q1: What is a DP3T slide switch?
A dp3t slide switch is a switch with two poles and three positions, allowing control of two circuits across three different states.

Q2: How does it compare to a dp3t rocker switch?
A dp3t rocker switch uses a rocking motion, while a slide switch offers more precise positioning and often a more compact design.

Q3: Is this a heavy duty switch?
Yes, it is designed as a heavy duty switch, suitable for frequent use and demanding applications.

Q4: Can it control motors?
Yes, this dp3t switch can be used for motor control, including forward, reverse, and off functions.

Q5: What is the lifespan of the switch?
The switch is rated for a minimum of 10,000 cycles, ensuring reliable long-term performance.

Vintage Audio & Hi-Fi: Used as a function selector on classic integrated amplifiers like the Sansui AU-717 to switch between Phono, Tuner, and Aux inputs for both stereo channels.

Professional Test Equipment: Serves as a primary mode or range selector on benchtop equipment, for example, a custom interface for a Tektronix MDO3 Series Oscilloscope to switch two channels between different input couplings.

Industrial Control Boxes: Integrated into manual control panels for machinery, allowing an operator to select a machine's state between "Run," "Idle," and "Jog" modes for two separate systems.
