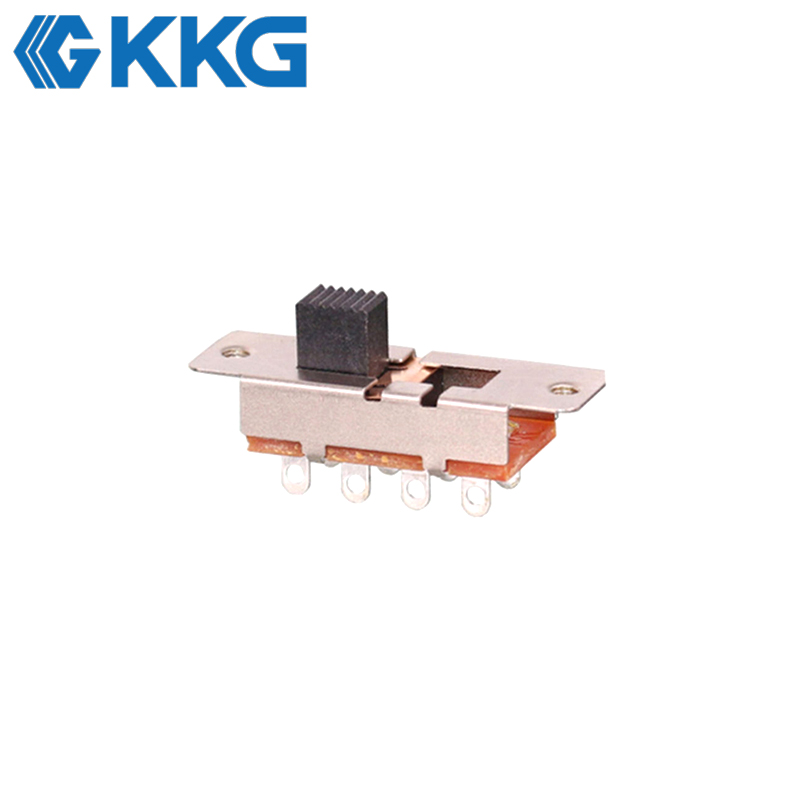

3-Position Panel & Pcb Mount Slide Switch

Product Description

The PCB mount slide switch is a high-performance electronic component designed for precise circuit control in a wide range of applications. Featuring a DP3T (Double Pole, Triple Throw) configuration, this switch enables simultaneous control of two independent circuits across three distinct positions, making it ideal for complex multi-mode operations.

Engineered for reliability, this component combines strong mechanical construction with stable electrical performance. Its hybrid mounting structure includes solder lug terminals for secure PCB connection and reinforced mounting points for enhanced stability. Compared to alternatives such as a pcb mount rocker switch, pcb mount micro switch, or pcb mount push button switch, this slide switch offers superior multi-position control and flexibility.

With smooth actuation, clear tactile feedback, and long operational life, this PCB mount slide switch is an excellent choice for industrial, commercial, and consumer electronics applications requiring dependable switching performance.

Product Specifications

Key Features

• DP3T Multi-Position Control: Advanced PCB mount slide switch for complex circuit selection

• Hybrid Mounting Design: Secure PCB installation with strong mechanical support

• High Electrical Reliability: Rated at 3A, 125V AC for stable operation

• Wide Temperature Range: Suitable for various environments (-25℃ to +85℃)

• Long Travel Mechanism: Provides accurate switching with clear tactile feedback

• Durable Construction: Designed for at least 10,000 switching cycles

Product Advantages

This PCB mount slide switch offers significant advantages over other switching solutions such as the pcb mount rocker switch, pcb mount micro switch, and pcb mount push button switch. While those switches typically provide simple on/off functionality, this slide switch enables multi-position control, making it ideal for devices requiring multiple operating modes.

Its robust design ensures mechanical stability and long-term durability, even in high-frequency usage environments. The precise contact system minimizes resistance and enhances electrical efficiency, while its compact structure helps optimize PCB layout and save space.

Additionally, the clear detent mechanism ensures accurate positioning, reducing the risk of misoperation and improving user experience.

Applications

The PCB mount slide switch is widely used in various industries and devices, including:

• Consumer electronics and household appliances

• Audio equipment and control panels

• Industrial control systems

• Automotive electronics and control modules

• Power tools and instrumentation

• Communication devices and testing equipment

FAQ

Q1: What is a PCB mount slide switch?
A PCB mount slide switch is a switch designed to be directly mounted onto a printed circuit board, allowing easy integration into electronic devices.

Q2: How does it compare to a pcb mount rocker switch?
Unlike a pcb mount rocker switch, which typically provides simple on/off control, this switch supports multiple positions for more complex circuit functions.

Q3: Can it replace a pcb mount micro switch or push button switch?
In applications requiring multi-position control, this switch can replace a pcb mount micro switch or pcb mount push button switch, offering greater flexibility.

Q4: Is it suitable for high-frequency use?
Yes, with a lifespan of over 10,000 cycles, it is designed for repeated and reliable operation.

Q5: What environments can it operate in?
This switch performs reliably in temperatures ranging from -25℃ to +85℃, making it suitable for both indoor and industrial environments.

Professional Microphones: Used as the pattern selector switch on high-end studio microphones like the Neumann U 87, allowing the user to select between Cardioid, Omnidirectional, and Figure-8 polar patterns.

Laboratory Power Supplies: Serves as an output range selector on benchtop power supplies, for example, on a BK Precision 1671A to switch between different voltage and current ranges.

Vintage Hi-Fi Equipment: Integrated as a main function selector on classic receivers like the Pioneer SX-1250, to switch between Phono, AM, and FM modes for both stereo channels.
