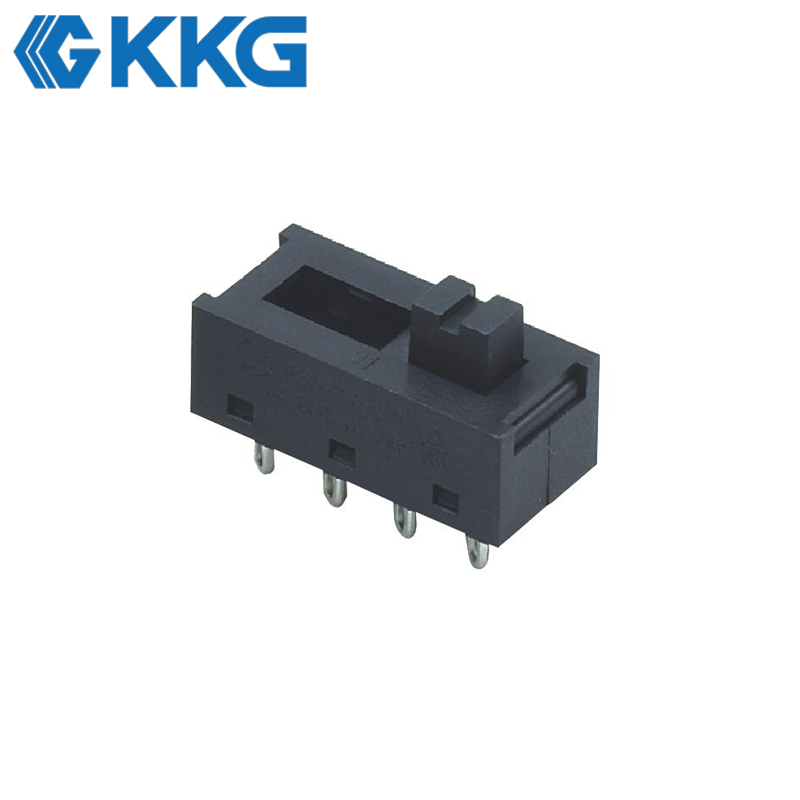

16a High Power Panel Mount Slide Switch

Product Name: High Power Slide Power Switch (DPDT Panel Mount Type)

Product Description

This power switch is a robust and reliable solution designed for high-current electrical applications. Engineered with a DPDT (Double Pole Double Throw) structure, it ensures safe and efficient switching by simultaneously controlling both live and neutral lines. Unlike standard switches, this high power switch is built to handle demanding loads, making it ideal for industrial equipment, appliances, and commercial systems.

With a strong panel-mounted structure, this product provides exceptional stability during operation. Its durable construction ensures long-term performance even under continuous use. The switch offers smooth sliding action with clear tactile feedback, giving users confidence in every operation.

Although commonly categorized alongside a panel mount push switch or panel mount rocker switch, this slide switch provides enhanced control and durability for high-load environments.

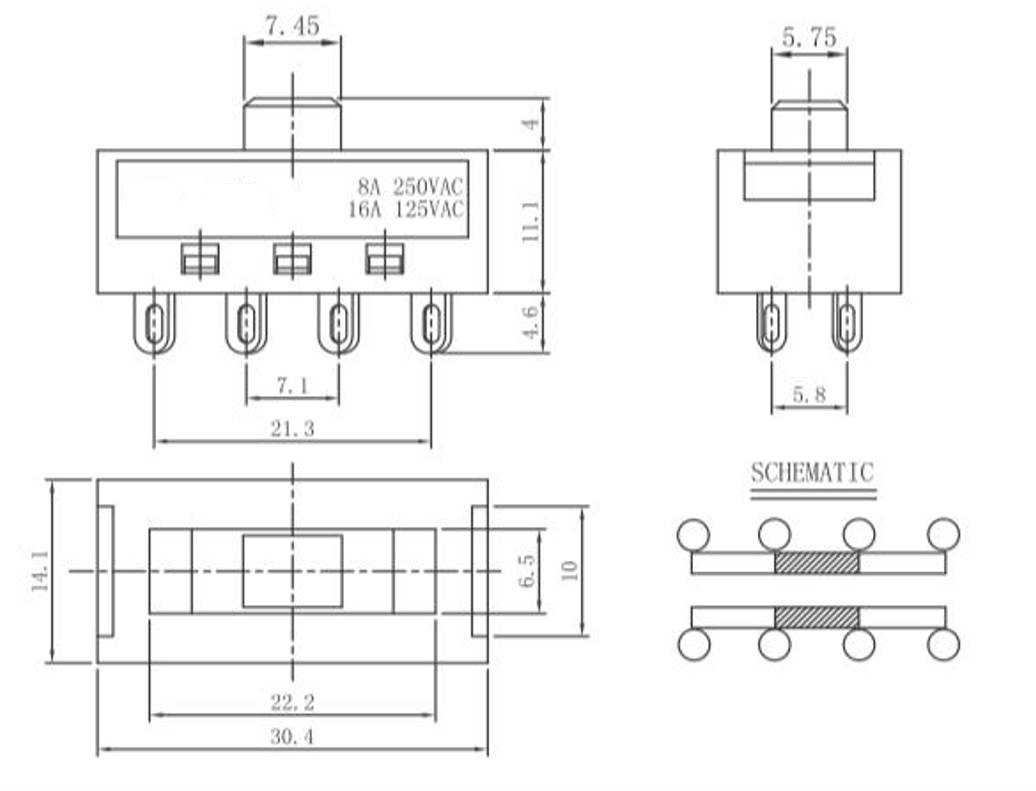

Specifications

Key Features

1. High Current Capacity

This high power switch supports up to 16A, making it suitable for heavy-duty electrical applications where stable current flow is critical.

2. DPDT Dual-Pole Design

Simultaneously controls two independent circuits, ensuring complete disconnection of power for enhanced safety.

3. Durable Panel Mount Structure

Designed for secure installation, similar to a panel mount rocker switch, ensuring long-term mechanical stability.

4. Reliable Contact System

Low contact resistance (≤30mΩ) reduces energy loss and heat generation, improving efficiency.

5. Wide Operating Temperature Range

Operates reliably from -25℃ to +85℃, suitable for harsh environments.

6. Clear Tactile Feedback

Smooth sliding action with firm positioning ensures accurate switching.

Product Advantages

• Enhanced Safety: Dual-pole switching cuts both live and neutral lines simultaneously

• Long Service Life: Minimum 10,000 cycles ensures durability

• High Insulation Performance: ≥100MΩ insulation resistance improves electrical safety

• Versatile Installation: Compatible with panel mounting systems similar to panel mount push switch and rocker designs

• Stable Performance: High dielectric strength prevents electrical breakdown

Applications

This power switch is widely used in various industries and devices, including:

• Household appliances (vacuum cleaners, mixers, power tools)

• Industrial machinery and control panels

• Heating equipment and high-power systems

• Power distribution units and control boxes

• Automotive and DC motor control systems (forward/reverse switching)

FAQ

Q1: What makes this switch different from a standard switch?

This is a high power switch designed for higher current loads and enhanced safety with dual-pole disconnection.

Q2: Can it replace a panel mount rocker switch?

Yes, in many applications it can replace a panel mount rocker switch, especially where higher durability and current capacity are required.

Q3: Is it suitable for PCB mounting?

Primarily designed for panel mounting, but certain designs allow for slide switch pcb integration depending on layout.

Q4: What applications benefit most from this switch?

High-load appliances, industrial equipment, and systems requiring reliable main power switching.

Q5: Does it support DC motor control?

Yes, the DPDT structure allows polarity reversal, making it suitable for DC motor forward/reverse control.

Conclusion

This power switch combines durability, safety, and high performance, making it an excellent choice for demanding applications. Whether used as a main power control component or integrated into complex systems, this high power switch delivers reliable operation comparable to or exceeding traditional panel mount push switch and panel mount rocker switch solutions.

Workshop & Cleaning Equipment: Used as the primary power switch on high-power workshop tools, such as a Shop-Vac wet/dry vacuum cleaner, to handle large motor startup currents.

Power Distribution: Serves as the master power switch on heavy-duty power strips and surge protectors, like the Tripp Lite ISOBAR series, to disconnect all outlets from the mains.

Kitchen Appliances: Integrated as the main power or speed control switch in high-torque kitchen appliances, for instance, a stand mixer like the KitchenAid Classic Series.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!
