Multi-Pole 3-Position Slide Switch

Product Name: 4P3T PCB 3 Position Slide Switch (High Precision Multi-Circuit Control)

Product Description

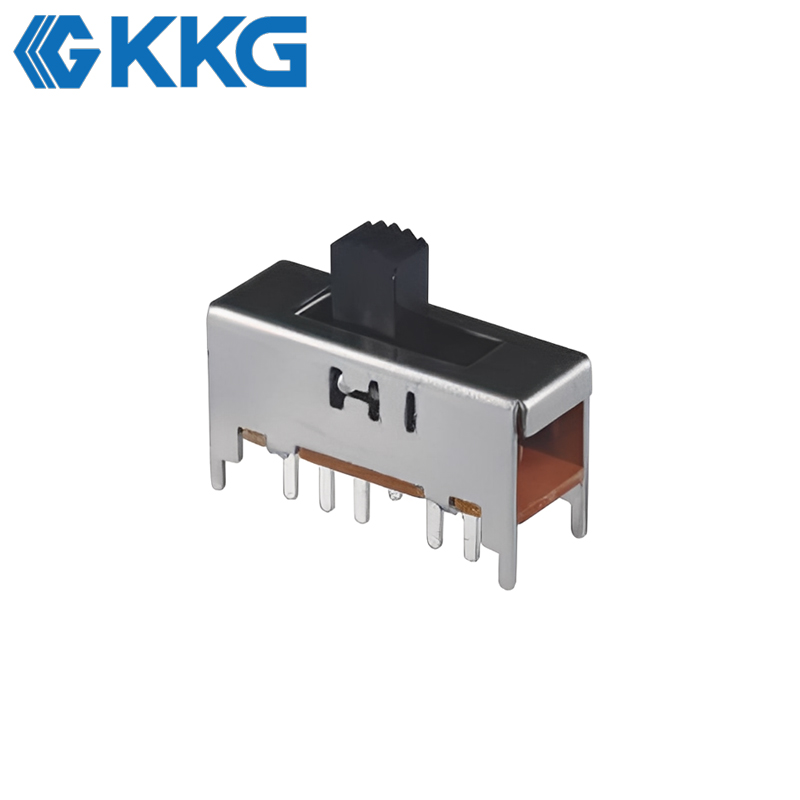

The KKG SS24F01 is a high-performance 3 position slide switch designed for advanced circuit control in compact electronic systems. Unlike a standard slide switch, this model features a 4P3T (Four Pole, Three Throw) configuration, enabling one actuator to simultaneously control four independent circuits across three distinct positions.

This makes it far more versatile than a traditional toggle switch, push switch, or rocker switch, as it consolidates multiple switching functions into a single compact component. Built with a through-hole PCB mounting structure, the switch ensures strong mechanical stability and long-term reliability even in demanding environments.

With smooth actuation, precise positioning, and consistent electrical performance, this slide switch is ideal for applications requiring multi-mode control and complex signal routing.

Specifications

Key Features

1. 4P3T Multi-Circuit Design

This 3 position slide switch can control four independent circuits simultaneously, offering exceptional flexibility compared to standard switches.

2. Three-Position Functionality

Provides three distinct operating states, enabling complex system modes that cannot be achieved with a simple toggle switch or push switch.

3. Through-Hole PCB Mounting

Ensures strong mechanical bonding and vibration resistance, making it more stable than many surface-mounted alternatives.

4. Compact and Efficient Design

Replaces multiple switches, saving PCB space and simplifying circuit layout.

5. Reliable Electrical Performance

Low contact resistance and high insulation resistance ensure stable signal transmission and reduced power loss.

6. Smooth and Precise Operation

Provides consistent tactile feedback and accurate switching between positions.

Product Advantages

• Space Saving: Replaces multiple slide switch or rocker switch components

• Enhanced Functionality: Supports complex routing and multi-mode operations

• High Reliability: Durable construction with long lifecycle (≥10,000 cycles)

• Cost Efficiency: Reduces component count and assembly complexity

• Versatile Integration: Suitable for both signal and low-power control applications

Applications

This 3 position slide switch is widely used in:

• Professional audio equipment and mixers

• Test and measurement instruments

• Industrial control systems

• Communication devices and embedded systems

• Consumer electronics requiring multi-mode selection

• PCB circuit boards with complex signal routing needs

FAQ

Q1: What is the difference between this and a standard slide switch?

A standard slide switch typically supports 1–2 circuits, while this model controls four circuits across three positions, offering much greater functionality.

Q2: Can this replace a toggle switch or rocker switch?

Yes, in many applications it can replace a toggle switch or rocker switch, especially when multiple circuits need to be controlled simultaneously.

Q3: Is it suitable for high-current applications?

No, this switch is rated at 0.3A 50V DC and is designed for signal-level or low-power applications.

Q4: What makes through-hole mounting better?

Through-hole mounting provides stronger mechanical stability and better resistance to vibration compared to surface-mount designs.

Q5: Can it simplify circuit design?

Yes, by combining multiple switching functions into one 3 position slide switch, it reduces PCB complexity and improves design efficiency.

Conclusion

The KKG SS24F01 3 position slide switch delivers powerful multi-circuit control in a compact and durable design. Whether used in professional electronics, industrial systems, or consumer devices, it provides a reliable alternative to traditional toggle switch, push switch, and rocker switch solutions while significantly enhancing functionality and efficiency.

Professional Audio Consoles: Used as a channel routing switch on a large-format mixing console like the Allen & Heath GLD-80, to assign a channel to multiple busses (e.g., Main Mix, Subgroup 1, Subgroup 2).

Vintage Synthesizers: Serves as a bank or patch selector on classic synthesizers, for example, a custom-built replica of the Roland Jupiter-8, to control multiple oscillator and filter settings at once.

Industrial Test Jigs: Integrated into custom-built test equipment and programming jigs for simultaneously routing multiple data and power lines to a device under test.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!

We ensure high production efficiency and ship your order within 7 days after payment.
