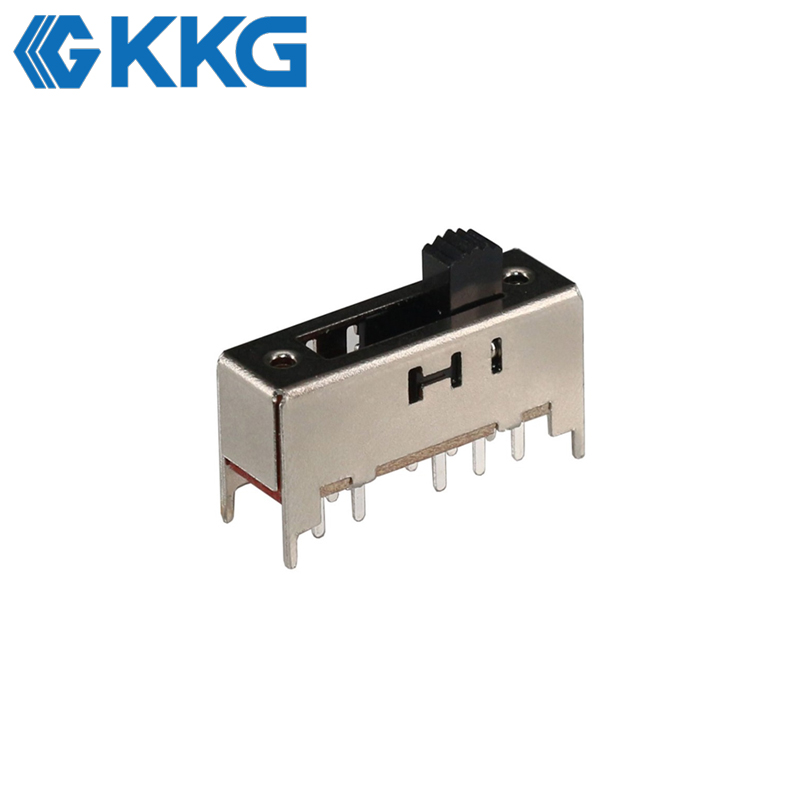

Heavy-Duty 4-Position DP4T Slide Switch

Product Name: DP4T Heavy Duty PCB Slide Switch (4 Position Multi-Control Switch)

Product Description

The KKG SS24H01 is a high-performance heavy duty switch designed for precision multi-position control in advanced electronic systems. Featuring a DP4T (Double Pole, Four Throw) configuration, this position switch allows a single actuator to control two independent circuits across four distinct operating states.

Compared to a traditional position slider or basic switch, this model offers significantly enhanced functionality, enabling complex routing and multi-mode control within a compact footprint. Its hybrid mounting design combines through-hole PCB pins with M2.6 screw-mount holes, ensuring superior mechanical stability and long-term durability even in demanding environments.

With smooth vertical actuation and a robust structure, this switch serves as a reliable position picker for applications requiring precise and repeatable switching performance.

Specifications

Key Features

1. DP4T Multi-Position Control

This position switch supports four distinct positions, enabling flexible control of dual circuits within a single component.

2. Heavy Duty Construction

Designed as a heavy duty switch, it offers excellent durability, capable of withstanding repeated use in industrial and professional environments.

3. Hybrid Mounting Design

The combination of screw mounting and PCB through-hole pins ensures exceptional stability and resistance to vibration.

4. Precise Position Selection

Functions as an accurate position picker, allowing users to easily select between four operating modes.

5. Smooth Vertical Actuation

The position slider provides consistent tactile feedback and easy operation for users.

6. Compact Integration

Replaces multiple switches or rotary selectors, optimizing space on control panels and circuit boards.

Product Advantages

• Multi-Function Integration: Combines multiple switching roles into one compact position switch

• Enhanced Reliability: Strong mechanical structure ensures long service life

• Space Optimization: Eliminates the need for multiple switches or bulky rotary designs

• User-Friendly Operation: Clear positioning improves usability and accuracy

• Cost-Effective Solution: Reduces component count and simplifies assembly

Applications

This heavy duty switch is widely used in:

• Professional audio equipment and signal routing systems

• Test and measurement instruments

• Industrial control panels and automation systems

• Communication devices and embedded electronics

• Multi-mode control interfaces requiring a reliable position picker

• Equipment requiring precise position slider functionality

FAQ

Q1: What makes this switch different from standard slide switches?

This position switch offers four selectable positions and dual-circuit control, far exceeding the capability of basic slide switches.

Q2: Is this suitable for high-current applications?

No, this is a signal-level heavy duty switch rated at 0.3A 50V DC, designed for control and routing rather than high power loads.

Q3: What is the benefit of the hybrid mounting system?

It provides both strong PCB connection and panel stability, ensuring reliable performance in high-vibration environments.

Q4: Can it replace rotary switches?

Yes, in many cases this position picker can replace rotary switches while saving space and simplifying design.

Q5: What industries commonly use this switch?

It is commonly used in audio equipment, industrial systems, and testing devices requiring multi-position control.

Conclusion

The KKG SS24H01 heavy duty switch delivers powerful multi-position control, durability, and compact integration. As a versatile position switch, it functions effectively as a position picker and position slider, making it an ideal solution for modern electronic systems that demand precision, reliability, and efficiency.

Professional Audio Consoles: Used as an input source selector on a high-end mixing console like the Behringer WING, allowing a stereo channel to select between Mic, Line, USB, or Network inputs.

Test and Measurement Equipment: Serves as a primary function selector on a benchtop LCR meter, for example, on a custom interface for a Keysight E4980AL, to switch two measurement channels between different test parameters.

Vintage Synthesizers: Integrated as a bank selector on classic synthesizers like the Oberheim OB-X, to choose between different banks of presets for two different voice circuits.

KKG Electronics uses temperature-resistant materials and high-temperature testing equipment.

The product's appearance does not change when tested at 260°C for 5 minutes!
