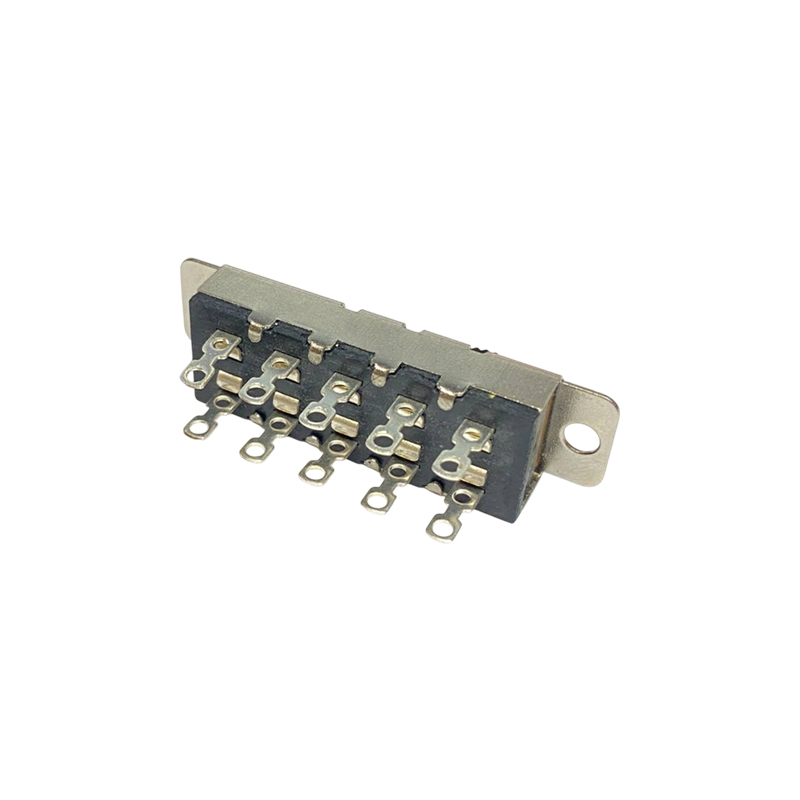

10-Pin 4-Position Heavy-Duty Slide Switch

Product Name: High Power DP4T Heavy Duty Slide Switch (4 Position AC Control Switch)

Product Description

The KKG SS24N01 is a premium heavy duty switch designed for high-power applications requiring reliable multi-position control. Engineered with a DP4T (Double Pole, Four Throw) configuration, this advanced position switch enables a single actuator to manage two independent circuits across four distinct operating states.

Unlike a standard position slider or simple on/off switch, this model delivers enhanced flexibility and performance for complex electrical systems. It is specifically built for AC power environments, supporting higher current loads up to 3A 250V AC. The hybrid construction—featuring solder lug terminals and screw-mount holes—ensures exceptional mechanical strength and secure installation.

With a robust structure and smooth actuation, this switch serves as a dependable position picker, offering precise control and long-term durability in demanding industrial and commercial applications.

Specifications

Key Features

1. High Power DP4T Configuration

This position switch supports four selectable positions while controlling two circuits simultaneously, enabling advanced electrical configurations.

2. Heavy Duty Performance

As a true heavy duty switch, it is designed to handle AC loads up to 3A 250V, ensuring safe and stable operation.

3. Hybrid Mounting Structure

Combines screw mounting with solder lug terminals, providing superior stability and strong electrical connections.

4. Precise Multi-Position Control

Functions as a reliable position picker, allowing accurate selection between four operational modes.

5. Durable Sliding Mechanism

The position slider delivers smooth movement with clear tactile feedback, improving user experience.

6. Long Service Life

Engineered for at least 10,000 cycles, ensuring consistent performance over time.

Product Advantages

• High Load Capability: Suitable for AC power systems requiring reliable switching

• Multi-Function Integration: Replaces multiple switches or rotary selectors

• Enhanced Safety: High dielectric strength and insulation resistance

• Space Saving Design: Compact solution for complex control systems

• Easy Installation: Flexible mounting options for panels and wiring setups

Applications

This heavy duty switch is ideal for a wide range of applications, including:

• Industrial control panels and machinery

• Heating systems and multi-stage power control devices

• Ventilation and fan speed control systems

• Audio equipment input selection systems

• Power distribution units and electrical control boxes

• Equipment requiring precise position picker or position slider functionality

FAQ

Q1: What makes this switch suitable for high-power applications?

This heavy duty switch is rated at 3A 250V AC and designed with robust internal contacts to safely handle higher electrical loads.

Q2: How many positions does this switch support?

It is a 4-position position switch, allowing four distinct operating states.

Q3: Can it replace a rotary switch?

Yes, this position picker can replace rotary switches in many applications while offering a more compact and user-friendly design.

Q4: What is the benefit of solder lug terminals?

They provide strong, reliable connections for high-current wiring, improving overall electrical stability.

Q5: Where is this switch commonly used?

It is widely used in industrial equipment, HVAC systems, and devices requiring multi-mode control.

Conclusion

The KKG SS24N01 heavy duty switch combines high power capacity, multi-position functionality, and durable construction into one advanced solution. As a versatile position switch, it performs reliably as a position picker and position slider, making it an excellent choice for demanding applications that require precision, safety, and long-lasting performance.
